F-Theta-Ronar Lenses

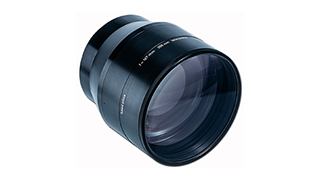

F-Theta-Ronar Lenses 340-360 nm

・Fused-silica designs
・Telecentric versions available
・Focal lengths ranging from 70 mm to 255 mm, tolerance ±1%
・Screw thread M85x1

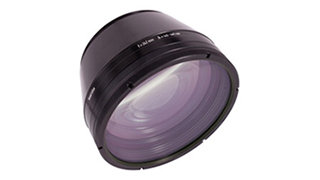

F-Theta-Ronar Lenses 440-460 nm

・Fused-silica design
・Focal length 262 mm, tolerance ±1%, further focal lengths coming soon
・Screw thread M85x1

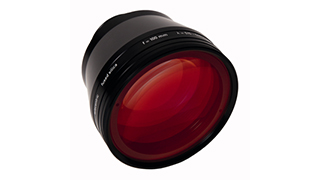

F-Theta-Ronar Lenses 515-540/532 nm

・Fused-silica and optical-glass designs
・Telecentric versions available
・Focal lengths ranging from 75 mm to 420 mm, tolerance ±1%
・Screw thread M85x1

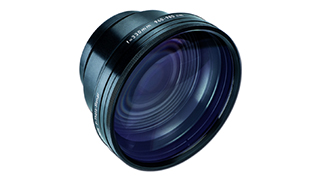

F-Theta-Ronar Lenses 940-980 nm

・Focal lengths ranging from 100 mm to 420 mm, tolerance ±1%
・Screw thread M85x1, except 4401-527-000-21 M76x1

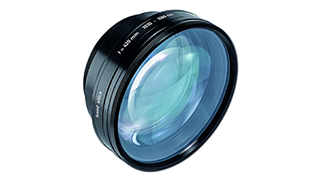

F-Theta-Ronar Lenses 1030-1080/1064 nm

・Fused-silica and optical-glass designs
・Telecentric versions available
・Focal lengths ranging from 70 mm to 420 mm, tolerance ±1 %
・Screw thread M85x1, except 4401-261-000-21 M76x1
F-Theta-Ronar Lenses 1900-2000 nm

・Fused-silica designs
・Focal lengths ranging from 265 mm to 437 mm, tolerance ±1 %
・Screw thread M85x1

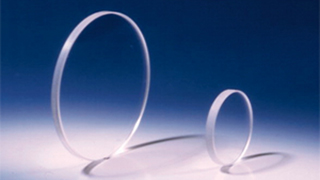

Protective Glasses

・Optimum protection for the optical system
・Coated on both sides
・High transmission for the corresponding wavelength or wavelength range
・High laser-damage threshold
・Short delivery time

Focus-Ronar Lenses

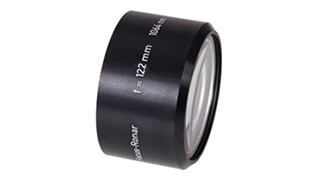

Focus-Ronar Lenses 1064+532 nm

Focussing lenses are optimized for high precision applications, as used in laser systems for welding, cutting, drilling and structuring.
・Focal lengths ranging from 58 mm to 122 mm
・Flexible lens exchange without any adjustment
・Three-lens-element designs

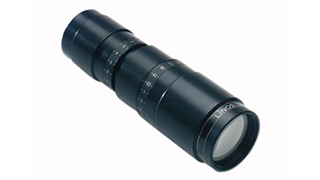

Variable Beam Expanderss

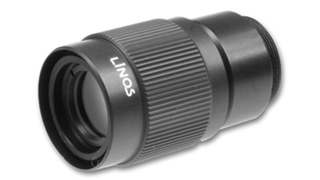

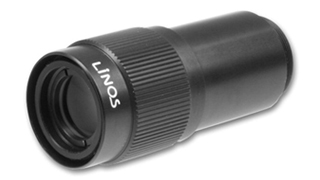

固定倍率ビームエキスパンダ
