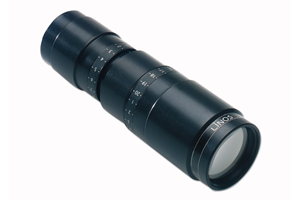

Variable Magnification Beam Expanders
- Continuous variation of magnification 2x...8x
- Choice between fused-silica or glass entrance lens
- Continuous variation of exit-beam divergence
- Wavelengths 355 nm, 532 nm, 633/780/830/980 nm or 1064 nm
- Precise scales allow reliable settings and high repeatability
- Max. exit-beam diameter 31 mm
- Max. length 165.5 mm
- Max. diameter 42.0 mm
- Mounting diameter 37.6-0.1 mm, reference on surface
仕様
Variable Magnification Beam Expanders 2x...8x
| Part No. | Wavelength (nm) | Max. entrance-beam diameter truncated at 1/e2 (mm) |
Entrance lens made of quartz | Wavelength range antireflective coating (nm) |
|---|---|---|---|---|
| 4401-402-000-20 | 355 | 3.4 | x | |
| 4401-446-000-20 | 532 | 4 | x | 515 - 540 |
| 4401-257-000-20 | 532 | 8 | ||
| 4401-258-000-20 | 633/780/ 830/980 | 8 | 630 - 980 | |
| 4401-359-000-20 | 1064 | 4 | x | 1030 - 1080 |
| 4401-256-000-20 | 1064 | 8 |
製品一覧
| 型番 | 製品名 | 価格 |
|---|---|---|
| 4401-402-000-20 | Beam-Expander var. 2x-8x 355 nm quartz | お問合せ |
| 4401-446-000-20 | Beam-Expander var. 2x-8x 532 nm quartz | お問合せ |
| 4401-257-000-20 | Beam-Expander var. 2x-8x 532 nm | お問合せ |
| 4401-258-000-20 | Beam-Expander var. 2x-8x 633/780/830/980 nm | お問合せ |
| 4401-359-000-20 | Beam-Expander var. 2x-8x 1064 nm quartz | お問合せ |
| 4401-256-000-20 | Beam-Expander var. 2x-8x 1064 nm | お問合せ |
-
※送料については、以下のページから詳細をご確認ください。
送料（配送料）について
技術資料
- Laser Material Processing Brochure
- Product sheet Variable Magnification Beam Expander
- Expansion 2-8x, Wavelength 355 nm, 4401-402-000-20, Lens data sheet + Curve sheet (PDF)
- Expansion 2-8x, Wavelength 355 nm, 4401-402-000-20, CAD data (Parasolid)
- Expansion 2-8x, Wavelength 355 nm, 4401-402-000-20, CAD data (STEP214)
- Expansion 2-8x, Wavelength 532 nm, 4401-446-000-20, Lens data sheet + Curve sheet (PDF)
- Expansion 2-8x, Wavelength 532 nm, 4401-446-000-20, CAD data (Parasolid)
- Expansion 2-8x, Wavelength 532 nm, 4401-446-000-20, CAD data (STEP214)
- Expansion 2-8x, Wavelength 532 nm, 4401-257-000-20, Lens data sheet + Curve sheet (PDF)
- Expansion 2-8x, Wavelength 532 nm, 4401-257-000-20, CAD data (Parasolid)
- Expansion 2-8x, Wavelength 532 nm, 4401-257-000-20, CAD data (Step214)
- Expansion 2-8x, Wavelength 633/780/830 nm, 4401-258-000-20, Lens data sheet (PDF)
- Expansion 2-8x, Wavelength 633/780/830/980 nm, 4401-258-000-20, CAD data (Parasolid)
- Expansion 2-8x, Wavelength 633/780/830/980 nm, 4401-258-000-20, CAD data (STEP214)
- Expansion 2-8x, Wavelength 1064 nm, 4401-359-000-20, Lens data sheet + Curve sheet (PDF)
- Expansion 2-8x, Wavelength 1064 nm, 4401-359-000-20, CAD data (Parasolid)
- Expansion 2-8x, Wavelength 1064 nm, 4401-359-000-20, CAD data (STEP214)
- Expansion 2-8x, Wavelength 1064 nm, 4401-256-000-20, Lens data sheet + Curve sheet (PDF)
- Expansion 2-8x, Wavelength 1064 nm, 4401-256-000-20, CAD data (Parasolid)
- Expansion 2-8x, Wavelength 1064 nm, 4401-256-000-20, CAD data (STEP214)
図面

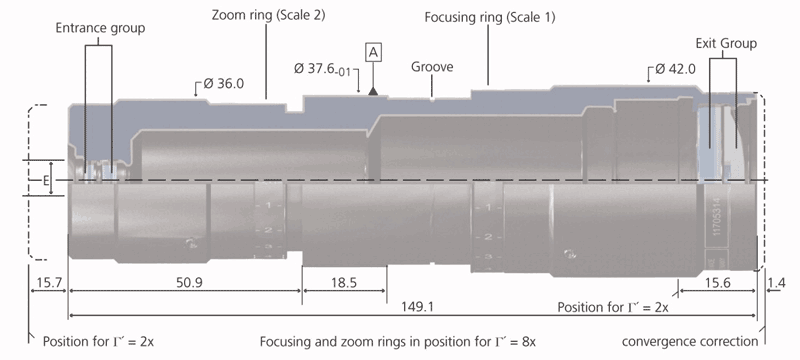

2-8x Beam Expander
