製品一覧 ・ 仕様

2行目の入力フィールドに先頭の文字から入力すると絞り込めます(例 : 「1」と入力すると、1から始まるデータの行のみが表示されます)。

型番 ・ 製品名 Length [mm] Threads / Boreholes Qty. (ea.)
G024230000
Optical Post 14x40; 2xM6
40 2x M6 1
G024231000
Set of Optical Posts 14x40; 2xM6 (10 pcs)
40 2x M6 10
G024232000
Optical Post 14x80; 2xM6
80 2x M6 1
G024233000
Set of Optical Posts 14x80; 2xM6 (10 pcs)
80 2x M6 10
G024234000
Optical Post 14x120; 2xM6
120 2x M6 1
G024235000
Set of Optical Posts 14x120; 2xM6 (10 pcs)
120 2x M6 10
G024236000
Optical Post 14x200; 2xM6
200 2x M6 1
G024238000
Optical Post 14x300; 2xM6
300 2x M6 1
G024240000
Optical Post 14x40; M6/M4
40 M4; M6 1
G024241000
Set of Optical Posts 14x40; M6/M4 (10 pcs)
40 M4; M6 10
G024242000
Optical Post 14x80; M6/M4
80 M4; M6 1
G024243000
Set of Optical Posts 14x80; M6/M4 (10 pcs)
80 M4; M6 10
G024244000
Optical Post 14x120; M6/M4
120 M4; M6 1
G024245000
Set of Optical Posts 14x120; M6/M4 (10 pcs)
120 M4; M6 10

図面 ・ アプリケーション例

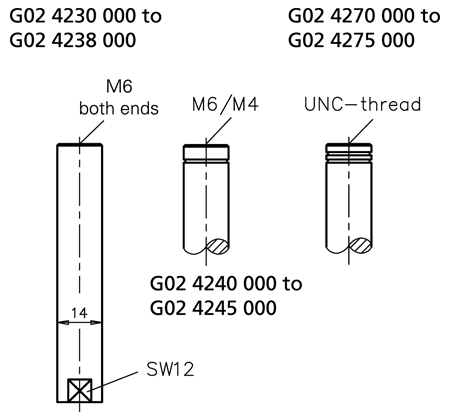

図面

図面

アプリケーション例 Adjust.X mirror holders, Rods, Mounting columns, Clamping Forks and Post Spacers on an optical table.
