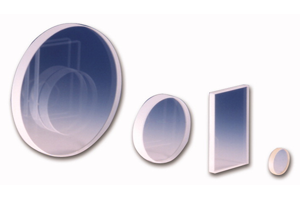

UV グレード石英ガラス平面基板
(高面精度 ・ 高平行度)

  • Ideal substrates for planar optical components, such as plane mirrors, filters, or beamsplitter plates
  • Ideal for use as windows in optical systems
  • Superior quality circular plates with high flatness and high parallelism
  • Surfaces uncoated
  • Our plane plates are also available with the following coatings:
  • VIS range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 450 - 700 nm).
  • NIR range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 725 - 1050 nm).
  • Nd:YAG fundamental (ARHS: R < 0.2 % per surface, AOI = 0°, center wavelength 1064 nm)
  • Reflective aluminum coating (RAL: for λ = 400 nm - 12 µm, damage threshold > 200 mJ / cm2)
  • Front surface mirror silver coating (RAGV: for λ = 500 nm - 12 µm, damage threshold > 200 mJ / cm2)
  • For customized optics and higher volumes please contact our sales team for your individual quotation.

仕様

Plane plates fabricated from UV-grade fused silica with higher flatness and better parallelism

Part No. ⌀ (mm) Thickness d (mm) Tolerance ⌀ (mm) Tolerance d (mm) Flatness Both Surfaces (λ) Wedge Angle γ
G390111000 25.4 5 -0.13 ±0.2 1/10 30''
G390112000 25.4 5 -0.13 ±0.2 1/20 1''
G390113000 40 8 -0.16 ±0.2 1/10 30''
G390114000 40 8 -0.16 ±0.2 1/20 1''
G390115000 50 8 -0.16 ±0.2 1/10 30''
G390116000 50 8 -0.16 ±0.2 1/20 1''
G390117000 63 8 -0.19 ±0.2 1/10 30''
G390118000 63 8 -0.19 ±0.2 1/20 1''

製品一覧

UV グレード石英ガラス平面基板(高面精度 ・ 高平行度)の一覧表です。

型番 商品名 価格
G390111000 Plane plate; Fused silica; D=25.4; L/10 ¥18,700
G390112000 Plane plate; Fused silica; D=25.4; L/20 ¥24,100
G390113000 Plane plate; Fused silica; D=40; L/10 ¥32,200
G390114000 Plane plate; Fused silica; D=40; L/20 ¥38,600
G390115000 Plane plate; Fused silica; D=50; L/10 ¥47,400
G390116000 Plane plate; Fused silica; D=50; L/20 ¥50,700
G390117000 Plane plate; Fused silica; D=63; L/10 ¥77,500
G390118000 Plane plate; Fused silica; D=63; L/20 ¥120,400
  • 表示価格に消費税は含まれておりません。
  • 為替レートの変動により予告なく価格を変更する場合があります。
  • ご注文の合計金額が 20,000円(税別)に満たない場合は、送料 1,000円(税別)を別途請求します。

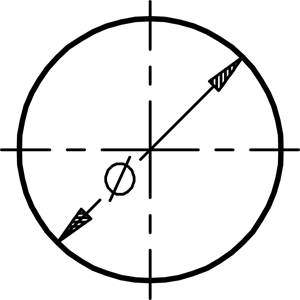

図面

図面

コーティング

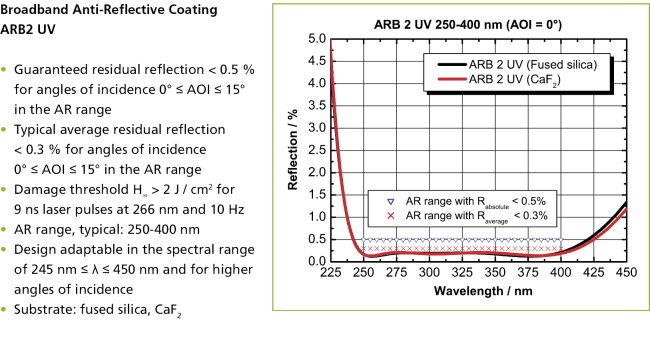

Broadbaand Anti-Reflective Coating ARB UV

Broadbaand Anti-Reflective Coating ARB2 VIS

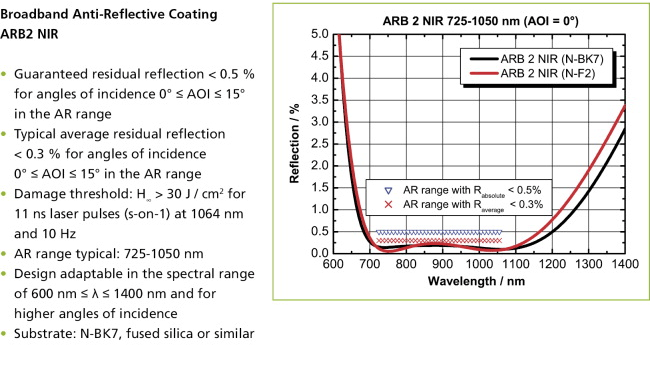

Broadbaand Anti-Reflective Coating ARB2 NIR

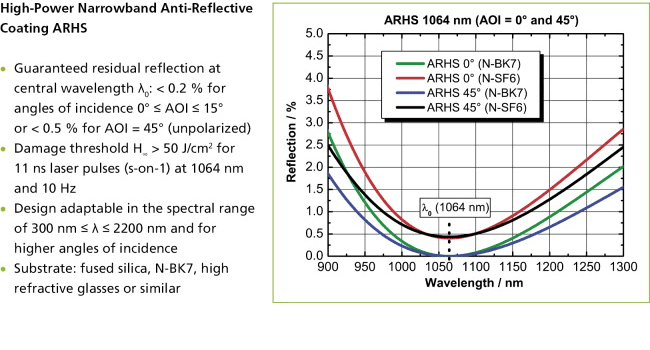

High-Power Narrowband Anti-Reflective Coating ARHS

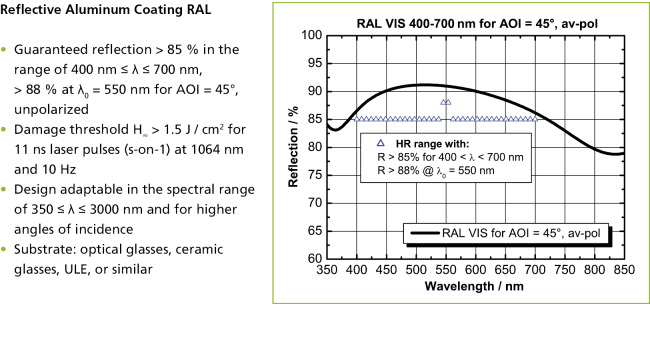

Reflective Aluminum Coatig RAL

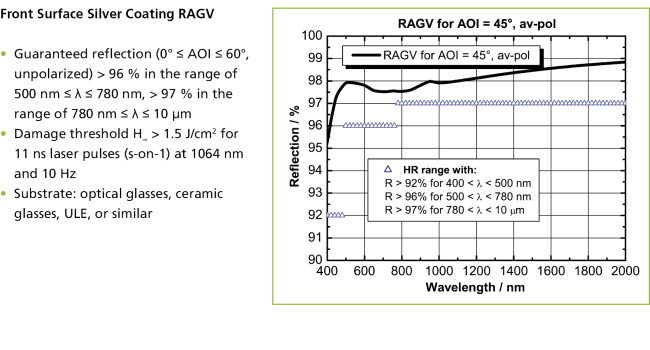

Front Surface Silver Coating RAGV
