カラーフィルター DT
- Absorption free interference systems
- Reflectance / transmittance of selected parts of VIS with high efficiency
- Edge filters made to small tolerances for angles of incidence of 0°
- Extremly high color saturation
- Hard, dense dichroic coatings
- Manufactured by patented "Sputter" technique
- High temperature stability of spectral features
- Heat-resistant up to 400 °C
- No aging or fading
- High mechanical resistance
- Thickness of all filters: 1.1 mm
- Special sizes up to 160 mm x 110 mm on request.
仕様
| Part No. | Dimensions (mm) | Type |
|---|---|---|
| G384082030 | 160x110 | DT-Red |
| G384082036 | 50x50 | DT-Red |
| G384082033 | 25x25 | DT-Red |
| G384082035 | ⌀=50 | DT-Red |
| G384082032 | ⌀=25 | DT-Red |
| G384082037 | 180x136 | DT-Green |
| G384081036 | 50x50 | DT-Green |
| G384081033 | 25x25 | DT-Green |
| G384081035 | ⌀=50 | DT-Green |
| G384081032 | ⌀=25 | DT-Green |
| G384080030 | 160x110 | DT-Blue |
| G384080036 | 50x50 | DT-Blue |
| G384080033 | 25x25 | DT-Blue |
| G384080035 | ⌀=50 | DT-Blue |
| G384080032 | ⌀=25 | DT-Blue |
| G384083030 | 160x110 | DT-Yellow |
| G384083036 | 50x50 | DT-Yellow |
| G384083033 | 25x25 | DT-Yellow |
| G384083035 | ⌀=50 | DT-Yellow |
| G384083032 | ⌀=25 | DT-Yellow |
| G384085030 | 160x110 | DT-Magenta |
| G384085036 | 50x50 | DT-Magenta |
| G384085033 | 25x25 | DT-Magenta |
| G384085035 | ⌀=50 | DT-Magenta |
| G384085032 | ⌀=25 | DT-Magenta |
| G384084030 | 160x110 | DT-Cyan |
| G384084036 | 50x50 | DT-Cyan |
| G384084033 | 25x25 | DT-Cyan |
| G384084035 | ⌀=50 | DT-Cyan |
| G384084032 | ⌀=25 | DT-Cyan |
製品一覧
カラーフィルター DTの一覧表です。 2行目のフィールドに頭の文字を入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。
| 型番 | 製品名 | 価格（税別） |
|---|---|---|
| G384082030 | Color Filter DT-Red; Lxh=160x110 | ¥48,200 |
| G384082036 | Color Filter DT-Red; Lxh=50x50 | ¥11,800 |
| G384082033 | Color Filter DT-Red; Lxh=25x25 | ¥6,600 |
| G384082035 | Color Filter DT-Red; D=50 | ¥12,800 |
| G384082032 | Color Filter DT-Red; D=25 | ¥7,400 |
| G384081037 | Color Filter DT-Green bxL=180x136 | ¥48,600 |
| G384081036 | Color Filter DT-Green; Lxh=50x50 | ¥12,400 |
| G384081033 | Color Filter DT-Green; Lxh=25x25 | ¥6,600 |
| G384081035 | Color Filter DT-Green; D=50 | ¥12,800 |
| G384081032 | Color Filter DT-Green; D=25 | ¥7,400 |
| G384080030 | Color Filter DT-Blue; Lxh=160x110 | ¥48,200 |
| G384080036 | Color Filter DT-Blue; Lxh=50x50 | ¥12,400 |
| G384080033 | Color Filter DT-Blue; Lxh=25x25 | ¥6,600 |
| G384080035 | Color Filter DT-Blue; D=50 | ¥12,800 |
| G384080032 | Color Filter DT-Blue; D=25 | ¥7,400 |
| G384083030 | Color Filter DT-Yellow; Lxh=160x110 | ¥48,200 |
| G384083036 | Color Filter DT-Yellow; Lxh=50x50 | ¥12,400 |
| G384083033 | Color Filter DT-Yellow; Lxh=25x25 | ¥6,600 |
| G384083035 | Color Filter DT-Yellow; D=50 | ¥12,800 |
| G384083032 | Color Filter DT-Yellow; D=25 | ¥7,400 |
| G384085030 | Color Filter DT-Magenta; Lxh=160x110 | ¥48,200 |
| G384085036 | Color Filter DT-Magenta; Lxh=50x50 | ¥11,800 |
| G384085033 | Color Filter DT-Magenta; Lxh=25x25 | ¥6,600 |
| G384085035 | Color Filter DT-Magenta; D=50 | ¥12,800 |
| G384085032 | Color Filter DT-Magenta; D=25 | ¥7,400 |
| G384084030 | Color Filter DT-Cyan; Lxh=160x110 | ¥48,200 |
| G384084036 | Color Filter DT-Cyan; Lxh=50x50 | ¥11,800 |
| G384084033 | Color Filter DT-Cyan; Lxh=25x25 | ¥6,600 |
| G384084035 | Color Filter DT-Cyan; D=50 | ¥12,800 |
| G384084032 | Color Filter DT-Cyan; D=25 | ¥7,400 |
-
※表示価格に消費税は含まれておりません。
-
※為替レートの変動により予告なく価格を変更する場合があります。
-
※ご注文の合計金額が 20,000円（税別）に満たない場合は、送料 1,000円（税別）を別途請求します。

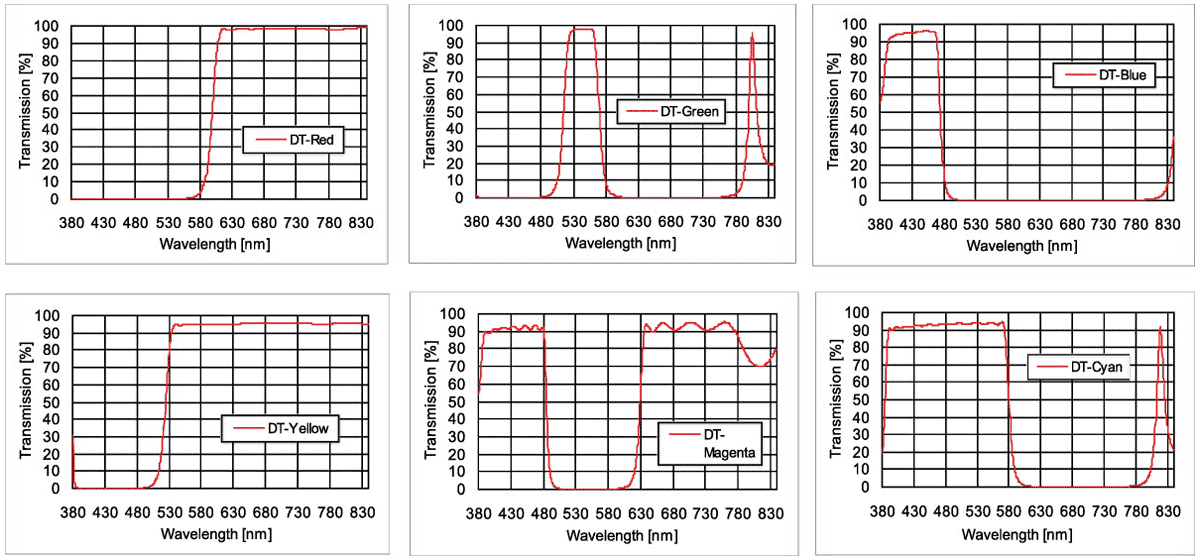

透過率
