アルミコートミラー
角型
仕様
| Part No. | Thickness d (mm) | Size bxL (mm) | Tolerance d (mm) | Tolerance b (mm) | Tolerance L (mm) | Surface Coating | Flatness (λ) |
|---|---|---|---|---|---|---|---|
| G340063000 | 2 | 10x10 | ±0.2 | -0.09 | -0.09 | RAL-Coating 380 nm - 10 µm | 1/4 |
| G340056000 | 2 | 10x15 | ±0.2 | -0.09 | -0.11 | RAL-Coating 380 nm - 10 µm | 1/2 |
| G340331331 | 2 | 10x15 | ±0.2 | -0.09 | -0.11 | RAL-Coating 380 nm - 10 µm | 1/10 |
| G340057000 | 2 | 15x20 | ±0.2 | -0.11 | -0.13 | RAL-Coating 380 nm - 10 µm | 1/2 |
| G340060000 | 2.5 | 20x30 | ±0.2 | -0.13 | -0.13 | RAL-Coating 380 nm - 10 µm | 1/2 |
| G340301000 | 4 | 20x30 | ±0.2 | -0.13 | -0.13 | RAL-Coating 380 nm - 10 µm | 1/10 |
| G340064000 | 8 | 40x58 | ±0.2 | -0.16 | -0.19 | RAL-Coating 380 nm - 10 µm | 1/4 |
| G340058000 | 8 | 60x85 | ±0.2 | -0.19 | -0.22 | RAL-Coating 380 nm - 10 µm | 1 |
| G340332331 | 8 | 60x85 | ±0.2 | -0.19 | -0.22 | RAL-Coating 380 nm - 10 µm | 1/10 |
| G340065000 | 8 | 80x120 | ±0.2 | -0.19 | -0.22 | RAL-Coating 380 nm - 10 µm | 2 |
| G340066000 | 10 | 100x150 | ±0.2 | -0.22 | -0.25 | RAL-Coating 380 nm - 10 µm | 4 |
| G340300000 | 2 | 10x15 | ±0.2 | -0.09 | -0.11 | RAL UV-Coating 220 nm - 3 µm | 1/2 |
| G340331000 | 2 | 10x15 | ±0.2 | -0.09 | -0.11 | RAL UV-Coating 220 nm - 3 µm | 1/10 |
| G340057332 | 2 | 15x20 | ±0.2 | -0.11 | -0.13 | RAL UV-Coating 220 nm - 3 µm | 1/2 |
| G340093000 | 2.5 | 20x30 | ±0.2 | -0.13 | -0.13 | RAL UV-Coating 220 nm - 3 µm | 1/2 |
| G340302000 | 4 | 20x30 | ±0.2 | -0.13 | -0.13 | RAL UV-Coating 220 nm - 3 µm | 1/10 |
| G340064332 | 8 | 40x58 | ±0.2 | -0.16 | -0.19 | RAL UV-Coating 220 nm - 3 µm | 1/4 |
| G340308000 | 8 | 60x85 | ±0.2 | -0.19 | -0.22 | RAL UV-Coating 220 nm - 3 µm | 1 |
ラインアップ
| 型番 | 商品名 |
|---|---|
| G340063000 | Pl. Mirror RAL; bxL=10x10; d=2; L/4 |
| G340056000 | Pl. Mirror RAL; bxL=10x15; d=2; L/2 |
| G340331331 | Pl. Mirror RAL; bxL=10x15; d=2; L/10 |
| G340057000 | Pl. Mirror RAL; bxL=15x20; d=2; L/2 |
| G340060000 | Pl. Mirror RAL; bxL=20x30; d=2.5; L/2 |
| G340301000 | Pl. Mirror RAL; bxL=20x30; d=4; L/10 |
| G340064000 | Pl. Mirror RAL; bxL=40x58; d=8; L/4 |
| G340058000 | Pl. Mirror RAL; bxL=60x85; d=8; 1L |
| G340332331 | Pl. Mirror RAL; bxL=60x85; d=8; L/10 |
| G340065000 | Pl. Mirror RAL; bxL=80x120; d=8; 2L |
| G340066000 | Pl. Mirror RAL; bxL=100x150; d=10; 4L |
| G340300000 | Pl. Mirror RAL-UV; bxL=10x15; d=2; L/2 |
| G340331000 | Pl. Mirror RAL-UV; bxL=10x15; d=2; L/10 |
| G340057332 | Pl. Mirror RAL-UV; bxL=15x20; d=2; L/2 |
| G340093000 | Pl. Mirror RAL-UV; bxL=20x30; d=2.5; L/2 |
| G340302000 | Pl. Mirror RAL-UV; bxL=20x30; d=4; L/10 |
| G340064332 | Pl. Mirror RAL-UV; bxL=40x58; d=8; L/4 |
| G340308000 | Pl. Mirror RAL-UV; bxL=60x85; d=8; 1L |
技術資料

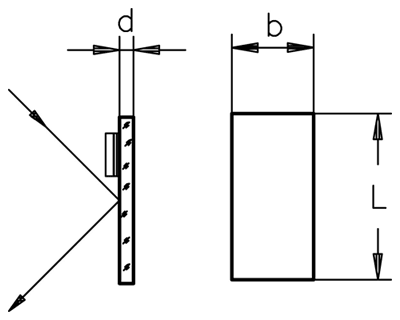

図面
反射率

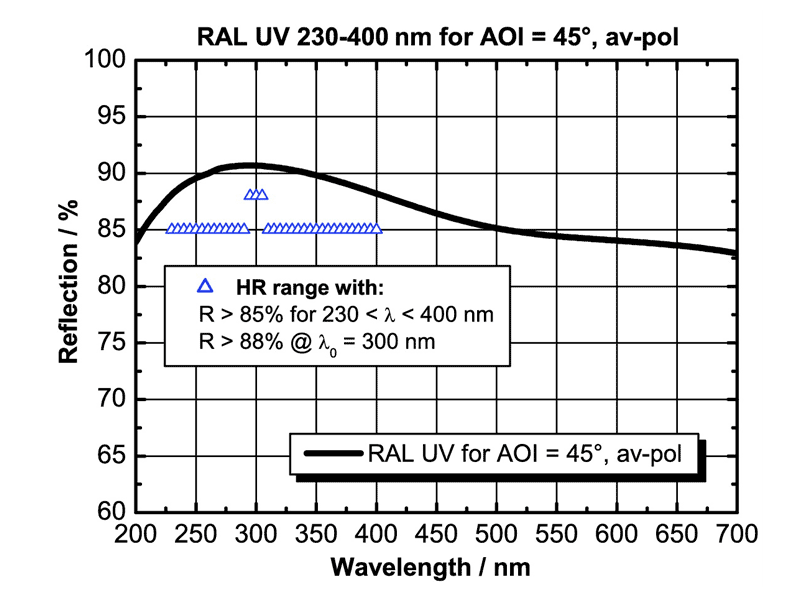

Example: RAL-E UV for 230-400 nm (AOI=45°, unpolarized)

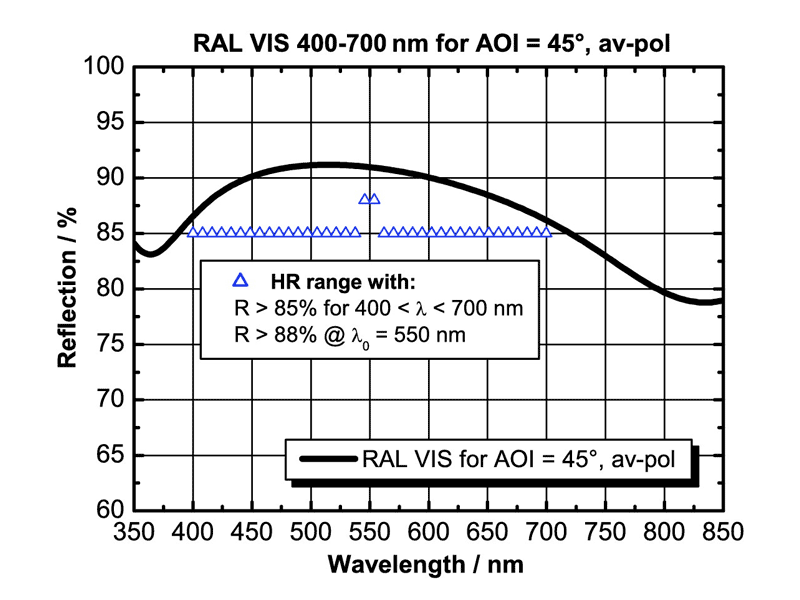

Example: RAL VIS for 400-700 nm (AOI=45°, unpolarized
