• Standard aluminium mirrors for the spectral ranges VIS to IR up to 10 µm or UV to 3 µm, respectively
  • High reflection within a broad spectral and angle-of-incidence range
  • Protected by an SiO2 overcoating (RAL)or MgF2protective overcoating for the UV-region (RAL UV)
  • Low expansion material *1
  • RAL-UV: Guaranteed reflection > 85 % in the range of 230 nm ≤ λ ≤ 400 nm, > 88 % at λ0 = 300 nm for AOI = 45°, unpolarized
  • RAL-UV: Damage threshold H > 200 mJ/cm2 at 193 nm with 30 ns laser pulses (s-on-1) at 10 Hz
  • RAL VIS: Guaranteed reflection > 85 % in the range of 400 nm ≤ λ ≤ 700 nm, > 88 % at λ0 = 550 nm for AOI = 45°, unpolarized
  • RAL VIS: Damage threshold H > 1.5 J / cm2 at 1064 nm with 11 ns laser pulses (s-on-1) at 10 Hz
  • *1
    Definition: A low expansion material is a glass with nd = 1.47 and a coefficient of expansion α20 - 300 °C = 3.3 * 10-6 / K (i.e. Pyrex, DURAN, Tempax, Borofloat).
  • *2
    Custom mirrors offering other substrates or coatings are available for higher quantities on request.

仕様

アルミコートミラー(円形)の一覧表です。 2行目のフィールドに先頭の文字から入力すると絞り込めます(例 : 「1」と入力すると、1から始まるデータの行のみが表示されます)。

型番 ⌀ [mm] Thickness d [mm] Tolerance ⌀ [mm] Tolerance d [mm] Surface Coating Flatness
(λ)
Recommendation
G340080000 6 1 -0.05 ±0.2 RAL-Coating 380 nm - 10 µm 1/4
G340081000 10 2 -0.06 ±0.2 RAL-Coating 380 nm - 10 µm 1/4
G340333331 10 2 -0.06 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340082000 12.7 2.5 -0.08 ±0.2 RAL-Coating 380 nm - 10 µm 1/4
G340341000 12.7 2.5 -0.08 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340207000 12.7 5 -0.08 ±0.2 RAL-Coating 380 nm - 10 µm 1/10 Lees Mirror Mount
G340083000 18 4 -0.08 ±0.2 RAL-Coating 380 nm - 10 µm 1/2
G340334331 18 4 -0.08 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340084000 21 4 -0.10 ±0.2 RAL-Coating 380 nm - 10 µm 1/4
G340005000 22.2 4 -0.10 ±0.2 RAL-Coating 380 nm - 10 µm 1/2
G340069000 22.2 4 -0.10 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340085000 25.4 5 -0.10 ±0.2 RAL-Coating 380 nm - 10 µm 1/2 Lees Mirror Mount
G340086000 25.4 5 -0.10 ±0.2 RAL-Coating 380 nm - 10 µm 1/10 Lees Mirror Mount
G340087000 31.5 5 -0.12 ±0.2 RAL-Coating 380 nm - 10 µm 1/2
G340008000 31.5 5 -0.12 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340088000 40 8 -0.12 ±0.2 RAL-Coating 380 nm - 10 µm 1/2
G340010000 40 8 -0.12 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340000000 50 5 -0.12 ±0.2 RAL-Coating 380 nm - 10 µm 1 Lees Mirror Mount
G340016000 50 10 -0.12 ±0.2 RAL-Coating 380 nm - 10 µm 1/10 Lees Mirror Mount
G340089000 63 10 -0.14 ±0.2 RAL-Coating 380 nm - 10 µm 1
G340097000 63 10 -0.14 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340090000 80 12.5 -0.14 ±0.2 RAL-Coating 380 nm - 10 µm 2
G340098000 80 12.5 -0.14 ±0.2 RAL-Coating 380 nm - 10 µm 1/10
G340080332 6 1 -0.05 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/4
G340340000 10 2 -0.06 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/4
G340333000 10 2 -0.06 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10
G340082332 12.7 2.5 -0.08 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/4
G340341332 12.7 2.5 -0.08 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10
G340304000 12.7 5 -0.08 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10 Lees Mirror Mount
G340334000 18 4 -0.08 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10
G340084332 21 4 -0.10 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/4
G340092000 22.2 4 -0.10 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/2
G340335000 22.2 4 -0.10 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10
G340343000 25.4 5 -0.10 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/2 Lees Mirror Mount
G340346000 25.4 5 -0.10 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10 Lees Mirror Mount
G340344000 31.5 5 -0.12 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/2
G340336000 31.5 5 -0.12 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10
G340010332 40 8 -0.12 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10
G340337000 50 10 -0.12 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10 Lees Mirror Mount
G340097332 63 10 -0.14 ±0.2 RAL UV-Coating 220 nm - 3 µm 1/10

製品一覧

アルミコートミラー(円形)の一覧表です。 2行目のフィールドに先頭の文字から入力すると絞り込めます(例 : 「1」と入力すると、1から始まるデータの行のみが表示されます)。

型番 製品名 価格(税別)
G340080000 Pl. Mirror RAL; D=6; d=1; L/4 ¥4,100
G340081000 Pl. Mirror RAL; D=10; d=2; L/4 ¥4,500
G340333331 Pl. Mirror RAL; D=10; d=2; L/10 ¥5,600
G340082000 Pl. Mirror RAL; D=12.7; d=2.5; L/4 ¥5,400
G340341000 Pl. Mirror RAL; D=12.7; d=2.5; L/10 ¥6,000
G340207000 Pl. Mirror RAL; D=12.7; d=5; L/10 ¥7,400
G340083000 Pl. Mirror RAL; D=18; d=4; L/2 ¥5,600
G340334331 Pl. Mirror RAL; D=18; d=4; L/10 ¥6,800
G340084000 Pl. Mirror RAL; D=21; d=4; L/4 ¥6,200
G340005000 Pl. Mirror RAL; D=22.2; d=4; L/2 ¥5,600
G340069000 Pl. Mirror RAL; D=22.2; d=4; L/10 ¥7,900
G340085000 Pl. Mirror RAL; D=25.4; d=5; L/2 ¥7,000
G340086000 Pl. Mirror RAL; D=25.4; d=5; L/10 ¥8,700
G340087000 Pl. Mirror RAL; D=31.5; d=5; L/2 ¥8,700
G340008000 Pl. Mirror RAL; D=31.5; d=5; L/10 ¥11,200
G340088000 Pl. Mirror RAL; D=40; d=8; L/2 ¥12,600
G340010000 Pl. Mirror RAL; D=40; d=8; L/10 ¥17,000
G340000000 Pl. Mirror RAL; D=50; d=5; 1L ¥14,900
G340016000 Pl. Mirror RAL; D=50; d=10; L/10 ¥17,600
G340097000 Pl. Mirror RAL; D=63; d=10; L/10 ¥26,800
G340090000 Pl. Mirror RAL; D=80; d=12.5; 2L ¥34,700
G340098000 Pl. Mirror RAL; D=80; d=12.5; L/10 ¥57,600
G340080332 Pl. Mirror RAL-UV; D=6; d=1; L/4 ¥5,800
G340340000 Pl. Mirror RAL-UV; D=10; d=2; L/4 ¥5,800
G340333000 Pl. Mirror RAL-UV; D=10; d=2; L/10 ¥6,000
G340082332 Pl. Mirror RAL-UV; D=12.7; d=2.5; L/4 ¥6,000
G340341332 Pl. Mirror RAL-UV; D=12.7; d=2.5; L/10 ¥5,600
G340304000 Pl. Mirror RAL-UV; D=12.7; d=5; L/10 ¥7,200
G340334000 Pl. Mirror RAL-UV; D=18; d=4; L/10 ¥7,000
G340092000 Pl. Mirror RAL-UV; D=22.2; d=4; L/2; ¥7,900
G340343000 Pl. Mirror RAL-UV; D=25.4; d=5; L/2 ¥7,900
G340346000 Pl. Mirror RAL-UV; D=25.4; d=5; L/10 ¥10,100
G340344000 Pl. Mirror RAL-UV; D=31.5; d=5; L/2 ¥9,900
G340336000 Pl. Mirror RAL-UV; D=31.5; d=5; L/10 ¥10,400
G340010332 Pl. Mirror RAL-UV; D=40; d=8; L/10 ¥21,200
G340337000 Pl. Mirror RAL-UV; D=50; d=10; L/10 ¥18,300
G340097332 Pl. Mirror RAL-UV; D=63; d=10; L/10 ¥27,800
  • 表示価格に消費税は含まれておりません。
  • 為替レートの変動により予告なく価格を変更する場合があります。
  • ご注文の合計金額が 20,000円(税別)に満たない場合は、別途 1,000円(税別)の送料がかかります。

技術資料

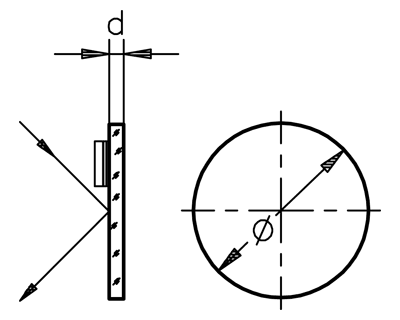

図面

図面

反射率

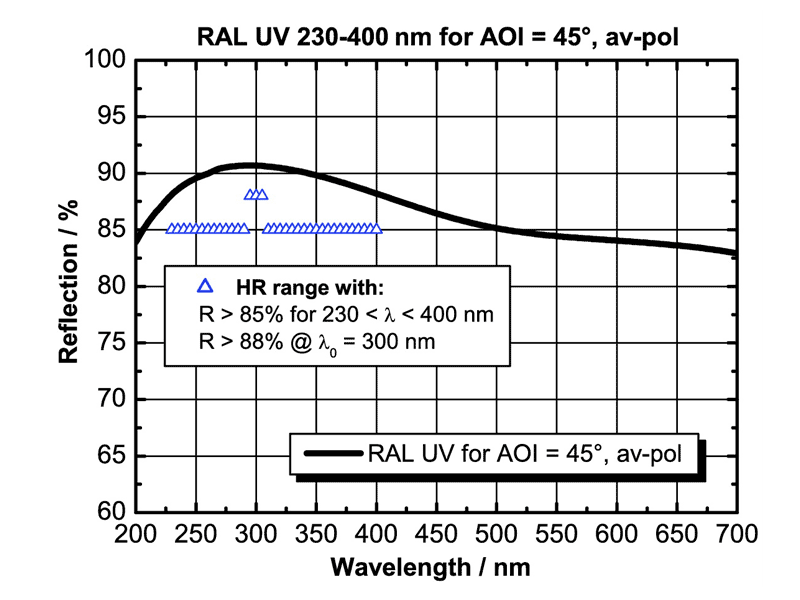

Example: RAL-E UV for 230-400 nm (AOI=45°, unpolarized) Example: RAL-E UV for 230-400 nm
(AOI=45°, unpolarized)

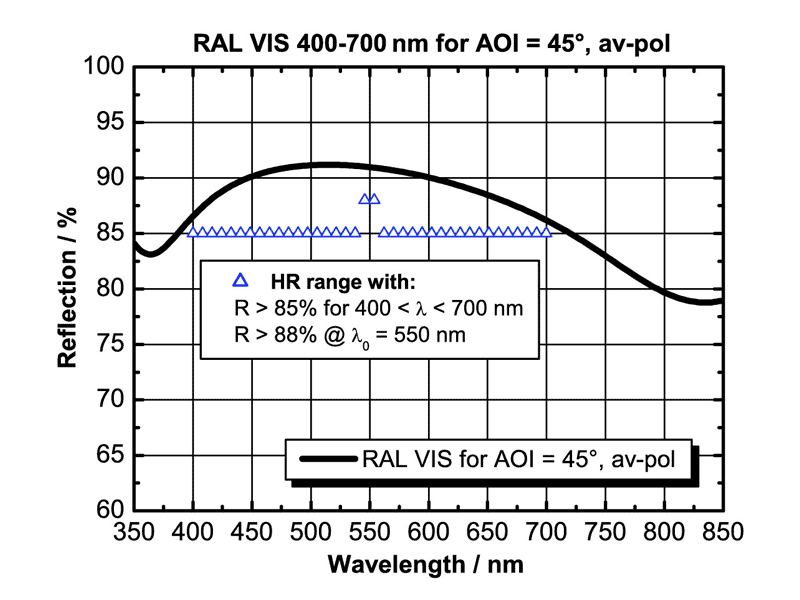

Example: RAL VIS for 400-700 nm (AOI=45°, unpolarized Example: RAL VIS for 400-700 nm
(AOI=45°, unpolarized
