Motorized Beam Expanders
- Continuous variable magnification 1x ...4x or 2x ...8x for wavelength 340-360 nm, 515-540 nm or 1030-1080 nm
- Fused-silica designs
- Continuous variation of exit-beam divergence
- Software running on the Windows™ platform (Win7, Win8, Win10)
- Reduce machine setup times by auto matic change of magnification
- Maintains laser-protection class during readjustment of the beam expander
- All-in-one design, controller integrated
- CE and ROHS conform
- IP 20
- Laser-damage threshold coating up to 4 J/cm2 @355 nm with 6 ns pulse length, 100 Hz
- Laser-damage threshold coating up to 20 J/cm2 @532 nm with 8 ns pulse length, 100 Hz and 0.6 J/cm2 @515 nm with 204 fs pulse length, 50 kHz
- Laser-damage threshold coating up to 40 J/cm2 @1064 nm with 12 ns pulse length, 100 Hz and 0.9 J/cm2 @1030 nm with 291 fs pulse length, 5 kHz
- Exit-beam diameter: max. 31 mm
- 10 individual pre-sets for magnification and divergence
- Pointing stability < 0.5 mrad
- Fast adjustment from 1x to 4x or 2x to 8x up to 7 sec
- Mechanical dimensions: length 167 mm (1x-4x), 203 mm (2x-8x), width 58 mm, height 55.5 mm
- Mechanical interface via high-precision holes 6H7 (recommended) or mounting diameter 39h11
- Including protective glass
- Different electronic interfaces: SubD9/ RS232, USB 2.0, Phoenix Contact/ RS232
- Baud rate: 9600 bit/sec
- Power input 7–12 V, Phoenix Contact 7-24 V
- Entrance-beam diameter max. = 31 mm / zoom factor

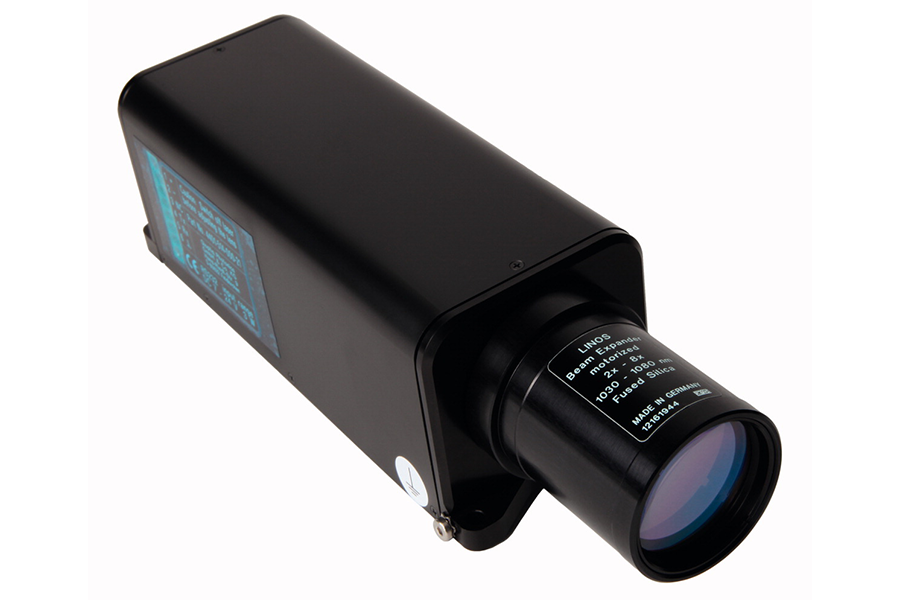

Black anodized Motorized Variable BeamExpander 2-8x

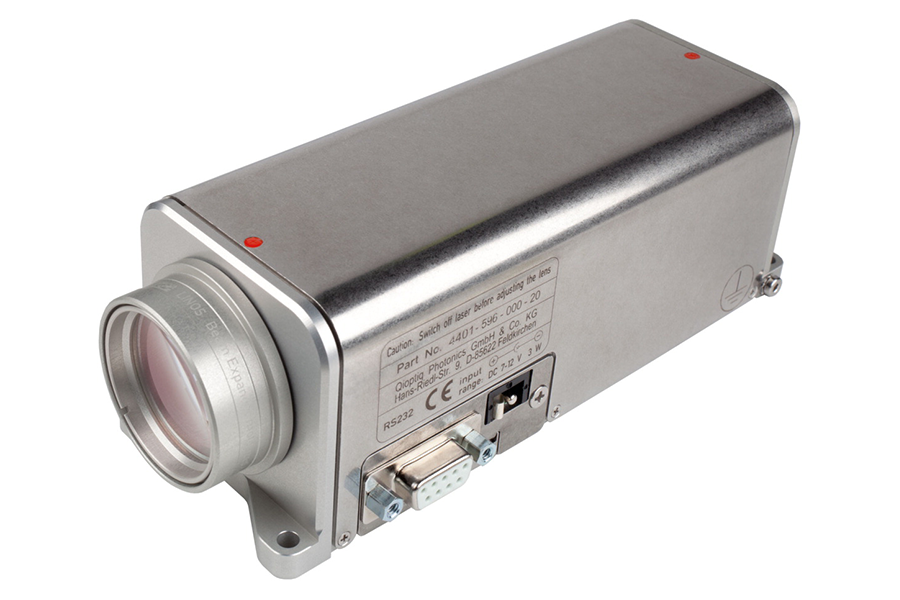

Colorless anodized Motorized Variable BeamExpander 1-4x
仕様
LINOS Motorized Beam Expander, 1x-4x, Fused Silica
| Part No. | Wavelength (nm) | Max. entrance-beam diameter truncated at 1/e2 (mm) |
Lens elements | PC Interface |
|---|---|---|---|---|
| 4401-596-000-20 | 340 – 360 | 8 | 5 | SubD9/ RS232 |
| 4401-596-000-21 | 340 – 360 | 8 | 5 | Phoenix Contact/ RS232 |
| 4401-596-000-22 | 340 – 360 | 8 | 5 | USB 2.0 |
| 4401-597-000-20 | 515 – 540 | 8 | 5 | SubD9/ RS232 |
| 4401-597-000-21 | 515 – 540 | 8 | 5 | Phoenix Contact/ RS232 |
| 4401-597-000-22 | 515 – 540 | 8 | 5 | USB 2.0 |
| 4401-598-000-20 | 1030 – 1080 | 8 | 5 | SubD9/ RS232 |
| 4401-598-000-21 | 1030 – 1080 | 8 | 5 | Phoenix Contact/ RS232 |
| 4401-598-000-22 | 1030 – 1080 | 8 | 5 | USB 2.0 |
LINOS Motorized Beam Expander, 2x-8x, Fused Silica
| Part No. | Wavelength (nm) | Max. entrance-beam diameter truncated at 1/e2 (mm) |
Lens elements | PC Interface |
|---|---|---|---|---|
| 4401-516-000-20 | 340 - 360 | 6 | 5 | SubD9/ RS232 |
| 4401-516-000-21 | 340 - 360 | 6 | 5 | Phoenix Contact/ RS232 |
| 4401-516-000-22 | 340 - 360 | 6 | 5 | USB 2.0 |
| 4401-515-000-20 | 515 – 540 | 8 | 5 | SubD9/ RS232 |
| 4401-515-000-21 | 515 – 540 | 8 | 5 | Phoenix Contact/ RS232 |
| 4401-515-000-22 | 515 – 540 | 8 | 5 | USB 2.0 |
| 4401-514-000-20 | 1030 – 1080 | 8 | 5 | SubD9/ RS232 |
| 4401-514-000-21 | 1030 – 1080 | 8 | 5 | Phoenix Contact/ RS232 |
| 4401-514-000-22 | 1030 – 1080 | 8 | 5 | USB 2.0 |
