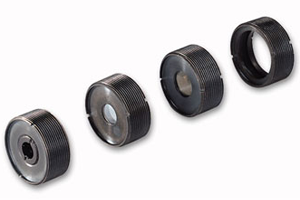

ネジ溝付きマウント
仕様
| Part No. | With retaining ring for | ⌀ A (mm) | ⌀ B (mm) | ⌀ C (mm) |
|---|---|---|---|---|
| G063683000 | Achromats | 5 | 6 | M10x0.5 |
| G063684000 | Achromats | 7 | 8 | M12x0.5 |
| G063685000 | Achromats | 9 | 10 | M14x0.5 |
| G063686000 | Achromats | 11.5 | 12.5 | M17x0.5 |
| G063687000 | Achromats | 11.5 | 12.8 | M17x0.5 |
| G063688000 | Lens and Achromats | 17 | 18 | M19x0.5 |
| G063689000 | Lens and Achromats | 18 | 19 | M19x0.5 |
| G063693000 | Lens | 5 | 6 | M10x0.5 |
| G063694000 | Lens | 7 | 8 | M12x0.5 |
| G063695000 | Lens | 9 | 10 | M14x0.5 |
| G063696000 | Lens | 11.5 | 12.5 | M17x0.5 |
| G063697000 | Lens | 11.5 | 12.8 | M17x0.5 |
ラインアップ
| 型番 | 商品名 |
|---|---|
| G063683000 | Threaded mount A6 (M23.2x0.75) |
| G063684000 | Threaded mount A8 (M23.2x0.75) |
| G063685000 | Threaded mount A10 (M23.2x0.75) |
| G063686000 | Threaded mount A12.5 (M23.2x0.75) |
| G063687000 | Threaded mount A12.7 (M23.2x0.75) |
| G063688000 | Threaded mount 18 (M23.2x0.75) |
| G063689000 | Threaded mount 19 (M23.2x0.75) |
| G063693000 | Threaded mount L6 (M23.2x0.75) |
| G063694000 | Threaded mount L8 (M23.2x0.75) |
| G063695000 | Threaded mount L10 (M23.2x0.75) |
| G063696000 | Threaded mount L12.5 (M23.2x0.75) |
| G063697000 | Threaded mount L12.7 (M23.2x0.75) |
| G063698000 | Threaded mount 25.4 (M32.5x0.75) |

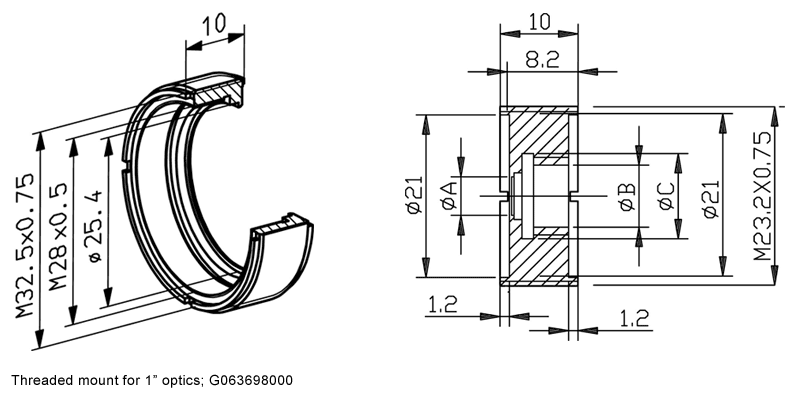

図面
