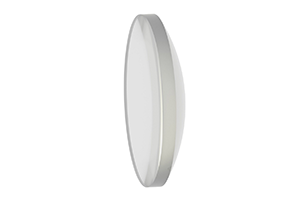

平凸レンズ（マウントなし）
仕様
2行目のフィールドに頭の文字を入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。
| 型番 | Optic Size ［mm］ | Focal Length ［mm］ | Material | Optic Centering Accuracy | Surface Quality | Optic Center Thickness dm ［mm］ | dm Tolerance ［mm］ | Optic Edge Thickness ［mm］ | ⌀ Tolerance ［mm］ | s'588 nm ［mm］ | f'546 nm ［mm］ | f'633 nm ［mm］ | Radius of Curvature 1 ［mm］ | Radius of Curvature 2 ［mm］ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G312001000 | ⌀2 | 1.5 | N-LASF9 | 9' | 3x0.063 | 0.8 | ±0.02 | 0.32 | -0.02 | 1.07 | 1.49 | 1.51 | 1.275 | Plane |
| G312003000 | ⌀3 | 2.5 | N-LASF9 | 6' | 3x0.063 | 1 | ±0.02 | 0.38 | -0.02 | 1.96 | 2.48 | 2.52 | 2.13 | Plane |
| G312004000 | ⌀3 | 3 | N-BK7 | 6' | 3x0.063 | 1.5 | ±0.02 | 0.34 | -0.02 | 2.01 | 2.99 | 3.01 | 1.55 | Plane |
| G312006000 | ⌀4 | 4 | N-BK7 | 6' | 3x0.063 | 2 | ±0.02 | 0.45 | -0.03 | 2.68 | 3.99 | 4.01 | 2.07 | Plane |
| G312007000 | ⌀5 | 5 | N-BK7 | 6' | 3x0.1 | 2.5 | ±0.02 | 0.57 | -0.03 | 3.35 | 4.98 | 5.02 | 2.58 | Plane |
| G312008000 | ⌀6 | 6 | N-BK7 | 6' | 3x0.1 | 3 | ±0.02 | 0.68 | -0.03 | 4.02 | 5.98 | 6.02 | 3.1 | Plane |
| G312009000 | ⌀7 | 7 | N-BK7 | 6' | 3x0.1 | 3.5 | ±0.02 | 0.8 | -0.04 | 4.69 | 6.98 | 7.02 | 3.62 | Plane |
| G312010000 | ⌀8 | 8 | N-BK7 | 6' | 3x0.1 | 4 | ±0.02 | 0.91 | -0.04 | 5.36 | 7.97 | 8.03 | 4.13 | Plane |
| G312011000 | ⌀10 | 10 | N-BK7 | 6' | 3x0.1 | 5 | ±0.02 | 1.14 | -0.04 | 6.7 | 9.96 | 10.03 | 5.17 | Plane |
| G312201000 | ⌀6 | 10 | N-BAK2 | 6' | 3x0.1 | 2 | ±0.10 | 1.1 | -0.03 | 8.82 | 10.08 | 10.15 | 5.46 | Plane |
| G312236000 | ⌀10 | 15 | N-BAK4 | 6' | 3x0.16 | 3 | ±0.10 | 1.4 | -0.04 | 12.99 | 14.84 | 14.95 | 8.47 | Plane |
| G312312000 | ⌀40 | 50 | N-BK7 | 10' | 5x0.25 | 11.8 | ±0.20 | 2.6 | -0.16 | 43.34 | 50.93 | 51.28 | 26.42 | Plane |
| G312314000 | ⌀22.4 | 40 | N-BK7 | 10' | 5x0.25 | 5 | ±0.20 | 1.7 | -0.13 | 37.02 | 40.16 | 40.45 | 20.83 | Plane |
| G312315000 | ⌀22.4 | 50 | N-BK7 | 10' | 5x0.25 | 4.5 | ±0.20 | 2 | -0.13 | 48.15 | 50.93 | 51.28 | 26.42 | Plane |
| G312316000 | ⌀22.4 | 60 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 2.1 | -0.13 | 59 | 61.4 | 61.84 | 31.85 | Plane |
| G312317000 | ⌀22.4 | 80 | N-BK7 | 10' | 5x0.25 | 3.5 | ±0.20 | 1.9 | -0.13 | 78.71 | 80.71 | 81.28 | 41.87 | Plane |
| G312318000 | ⌀22.4 | 100 | N-BK7 | 10' | 5x0.25 | 3.2 | ±0.20 | 2 | -0.13 | 99.15 | 100.88 | 101.6 | 52.33 | Plane |
| G312319000 | ⌀22.4 | 150 | N-BK7 | 10' | 5x0.25 | 3 | ±0.20 | 2.2 | -0.13 | 149.54 | 150.94 | 152.02 | 78.3 | Plane |
| G312320000 | ⌀22.4 | 200 | N-BK7 | 10' | 5x0.25 | 2.7 | ±0.20 | 2.1 | -0.13 | 200.27 | 201.28 | 202.72 | 104.41 | Plane |
| G312321000 | ⌀25.4 | 50 | N-BK7 | 10' | 5x0.25 | 5 | ±0.20 | 1.8 | -0.15 | 47.09 | 50.2 | 50.55 | 26.04 | Plane |
| G312322000 | ⌀25.4 | 80 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 2 | -0.15 | 77.88 | 79.56 | 80.12 | 41.27 | Plane |
| G312323000 | ⌀25.4 | 100 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 2.4 | -0.15 | 96.46 | 98.73 | 99.43 | 51.21 | Plane |
| G312324000 | ⌀25.4 | 150 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 3 | -0.15 | 148.87 | 150.94 | 152.02 | 78.3 | Plane |
| G312325000 | ⌀25.4 | 200 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 3.2 | -0.15 | 196.51 | 198.41 | 199.81 | 102.92 | Plane |
| G312326000 | ⌀25.4 | 300 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 3.5 | -0.15 | 295.33 | 296.86 | 298.96 | 153.99 | Plane |
| G312327000 | ⌀25.4 | 500 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 3.7 | -0.15 | 501.22 | 501.98 | 505.53 | 260.39 | Plane |
| G312328000 | ⌀25.4 | 1000 | N-BK7 | 10' | 5x0.25 | 4 | ±0.20 | 3.8 | -0.15 | 981.21 | 980.2 | 987.12 | 508.45 | Plane |
| G312329000 | ⌀12.5 | 20 | N-BK7 | 3' | 3x0.16 | 3.5 | ±0.10 | 1.4 | -0.05 | 17.9 | 20.13 | 20.27 | 10.44 | Plane |
| G312330000 | ⌀12.5 | 25 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 1.4 | -0.11 | 23.27 | 25.16 | 25.34 | 13.05 | Plane |
| G312331000 | ⌀18 | 30 | N-BK7 | 10' | 3x0.16 | 4.5 | ±0.10 | 1.7 | -0.11 | 27.48 | 30.33 | 30.55 | 15.73 | Plane |
| G312332000 | ⌀31.5 | 60 | N-BK7 | 3' | 3x0.25 | 6.3 | ±0.20 | 2.1 | -0.07 | 57.48 | 61.4 | 61.84 | 31.85 | Plane |
| G312333000 | ⌀31.5 | 100 | N-BK7 | 3' | 3x0.25 | 4.5 | ±0.20 | 2.1 | -0.07 | 98.3 | 100.88 | 101.6 | 52.33 | Plane |
| G312334000 | ⌀50 | 100 | N-BK7 | 10' | 5x0.25 | 9 | ±0.20 | 2.6 | -0.16 | 95.33 | 100.88 | 101.6 | 52.33 | Plane |
| G312335000 | ⌀50 | 150 | N-BK7 | 10' | 5x0.25 | 6.5 | ±0.20 | 2.4 | -0.16 | 147.23 | 150.94 | 152.02 | 78.3 | Plane |
| G312340000 | ⌀40 | 60 | N-BK7 | 10' | 5x0.25 | 9.5 | ±0.20 | 2.4 | -0.16 | 55.37 | 61.4 | 61.84 | 31.85 | Plane |
| G312341000 | ⌀40 | 150 | N-BK7 | 10' | 5x0.25 | 5 | ±0.20 | 2.4 | -0.16 | 148.22 | 150.94 | 152.02 | 78.3 | Plane |
| G312350000 | ⌀40 | 80 | N-BK7 | 10' | 5x0.25 | 7.5 | ±0.20 | 2.3 | -0.16 | 74.91 | 79.56 | 80.12 | 41.27 | Plane |
| G312351000 | ⌀12.7 | 30 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 1.6 | -0.12 | 28.03 | 29.9 | 30.11 | 15.51 | Plane |
| G312352000 | ⌀12.7 | 50 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.2 | -0.12 | 48.41 | 50.2 | 50.55 | 26.04 | Plane |
| G312353000 | ⌀12.7 | 80 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.5 | -0.12 | 77.88 | 79.56 | 80.12 | 41.27 | Plane |
| G312354000 | ⌀12.7 | 100 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.6 | -0.12 | 97.12 | 98.73 | 99.43 | 51.21 | Plane |
| G312355000 | ⌀12.7 | 150 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.7 | -0.12 | 147.36 | 148.79 | 149.84 | 77.18 | Plane |
| G312356000 | ⌀12.7 | 200 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.8 | -0.12 | 197.17 | 198.41 | 199.81 | 102.92 | Plane |
| G312357000 | ⌀12.7 | 300 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.9 | -0.12 | 295.99 | 296.86 | 298.96 | 153.99 | Plane |
| G312358000 | ⌀12.7 | 500 | N-BK7 | 10' | 3x0.16 | 3 | ±0.10 | 2.9 | -0.12 | 501.87 | 501.98 | 505.53 | 260.39 | Plane |
| G312361000 | ⌀63 | 140 | N-BK7 | 10' | 5x0.25 | 10 | ±0.20 | 2.8 | -0.19 | 134.4 | 140.47 | 141.46 | 72.862 | Plane |
| G312362000 | ⌀63 | 200 | N-BK7 | 10' | 5x0.25 | 8 | ±0.20 | 3.1 | -0.19 | 196.78 | 201.28 | 202.72 | 104.41 | Plane |
| G312363000 | ⌀63 | 300 | N-BK7 | 10' | 5x0.25 | 5.5 | ±0.20 | 2.3 | -0.19 | 298.7 | 301.16 | 303.33 | 156.22 | Plane |
| G312401000 | ⌀31.5 | 40 | N-BAK4 | 3' | 3x0.25 | 8.3 | ±0.20 | 2 | -0.07 | 34.92 | 40.04 | 40.36 | 22.87 | Plane |
| G312402000 | ⌀31.5 | 50 | N-BAK4 | 3' | 3x0.25 | 6.7 | ±0.20 | 2 | -0.07 | 45.99 | 50.05 | 50.46 | 28.59 | Plane |
| G312403000 | ⌀31.5 | 80 | N-BK7 | 3' | 3x0.25 | 5 | ±0.20 | 1.9 | -0.07 | 77.14 | 80.14 | 80.7 | 41.57 | Plane |
| G312404000 | ⌀31.5 | 150 | N-BK7 | 3' | 3x0.25 | 4 | ±0.20 | 2.4 | -0.07 | 148.33 | 150.41 | 151.47 | 78.02 | Plane |
| G312405000 | ⌀31.5 | 200 | N-BK7 | 3' | 3x0.25 | 3.2 | ±0.20 | 2 | -0.07 | 199.21 | 200.57 | 201.99 | 104.04 | Plane |
| G312406000 | ⌀31.5 | 300 | N-BK7 | 3' | 3x0.25 | 3 | ±0.20 | 2.2 | -0.07 | 299.23 | 300.09 | 302.21 | 155.66 | Plane |
| G312407000 | ⌀31.5 | 500 | N-BK7 | 3' | 3x0.25 | 2.5 | ±0.20 | 2 | -0.07 | 500.43 | 500.22 | 503.76 | 259.48 | Plane |
製品一覧
- コーティングなし ： 型番末尾 xxx=000
- ARB2-VIS ： 型番末尾 xxx=322

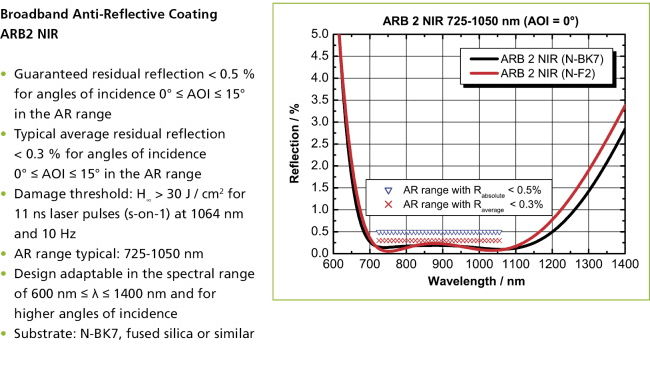

- ARB2-NIR ： 型番末尾 xxx=525

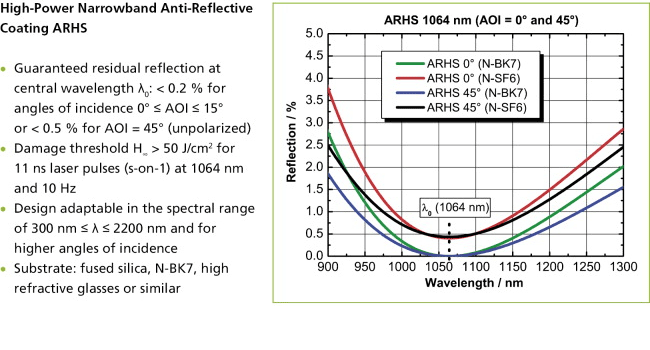

- ARHS-YAG ： 型番末尾 xxx=329
- RAL(AL) ： 型番末尾 xxx=331
- RAGV ： 型番末尾 xxx=400
| 型番 | 製品名 |
|---|---|
| G312003xxx | Plano-convex lens; N-LASF 9; D=3; F=2.5 |
| G312004xxx | Plano-convex lens; N-BK 7; D=3; F=3 |
| G312006xxx | Plano-convex lens; N-BK 7; D=4; F=4 |
| G312007xxx | Plano-convex lens; N-BK 7; D=5; F=5 |
| G312008xxx | Plano-convex lens; N-BK 7; D=6; F=6 |
| G312009xxx | Plano-convex lens; N-BK 7; D=7; F=7 |
| G312010xxx | Plano-convex lens; N-BK 7; D=8; F=8 |
| G312011xxx | Plano-convex lens; N-BK 7; D=10; F=10 |
| 型番 | 製品名 |
|---|---|
| G312201xxx | Plano-convex lens; N-BAK2; D=6; F=10 |
| G312236xxx | Plano-convex lens; N-BaK4; D=10; F=15 |
| G312312xxx | Plano-convex lens; N-BK 7; D=40; F=50 |
| G312314xxx | Plano-convex lens; N-BK 7; D=22.4; F=40 |
| G312315xxx | Plano-convex lens; N-BK 7; D=22.4; F=50 |
| G312316xxx | Plano-convex lens; N-BK 7; D=22.4; F=60 |
| G312317xxx | Plano-convex lens; N-BK 7; D=22.4; F=80 |
| G312318xxx | Plano-convex lens; N-BK 7; D=22.4; F=100 |
| G312319xxx | Plano-convex lens; N-BK 7; D=22.4; F=150 |
|---|---|
| G312320xxx | Plano-convex lens; N-BK 7; D=22.4; F=200 |
| G312321xxx | Plano-convex lens; N-BK 7; D=25.4; F=50 |
| G312322xxx | Plano-convex lens; N-BK 7; D=25.4; F=80 |
| G312323xxx | Plano-convex lens; N-BK 7; D=25.4; F=100 |
| G312324xxx | Plano-convex lens; N-BK 7; D=25.4; F=150 |
| G312325xxx | Plano-convex lens; N-BK 7; D=25.4; F=200 |
| G312326xxx | Plano-convex lens; N-BK 7; D=25.4; F=300 |
| G312327xxx | Plano-convex lens; N-BK 7; D=25.4; F=500 |
| G312328xxx | Plano-convex lens; N-BK 7; D=25.4; F=1000 |
|---|---|
| G312329xxx | Plano-convex lens; N-BK 7; D=12.5; F=20 |
| G312330xxx | Plano-convex lens; N-BK 7; D=12.5; F=25 |
| G312331xxx | Plano-convex lens; N-BK 7; D=18; F=30 |
| G312332xxx | Plano-convex lens; N-BK 7; D=31.5; F=60 |
| G312333xxx | Plano-convex lens; N-BK 7; D=31.5; F=100 |
| G312334xxx | Plano-convex lens; N-BK 7; D=50; F=100 |
| G312335xxx | Plano-convex lens; N-BK 7; D=50; F=150 |
| G312340xxx | Plano-convex lens; N-BK 7; D=40; F=60 |
| G312341xxx | Plano-convex lens; N-BK 7; D=40; F=150 |
|---|---|
| G312350xxx | Plano-convex lens; N-BK 7; D=40; F=80 |
| G312351xxx | Plano-convex lens; N-BK 7; D=12.7; F=30 |
| G312352xxx | Plano-convex lens; N-BK 7; D=12.7; F=50 |
| G312353xxx | Plano-convex lens; N-BK 7; D=12.7; F=80 |
| G312354xxx | Plano-convex lens; N-BK 7; D=12.7; F=100 |
| G312355xxx | Plano-convex lens; N-BK 7; D=12.7; F=150 |
| G312356xxx | Plano-convex lens; N-BK 7; D=12.7; F=200 |
| G312357xxx | Plano-convex lens; N-BK 7; D=12.7; F=300 |
| G312358xxx | Plano-convex lens; N-BK 7; D=12.7; F=500 |
|---|---|
| G312401xxx | Plano-convex lens; N-BaK 4; D=31.5; F=40 |
| G312402xxx | Plano-convex lens; N-BaK 4; D=31.5; F=50 |
| G312403xxx | Plano-convex lens; N-BK 7; D=31.5; F=80 |
| G312404xxx | Plano-convex lens; N-BK 7; D=31.5; F=150 |
| G312405xxx | Plano-convex lens; N-BK 7; D=31.5; F=200 |
| G312406xxx | Plano-convex lens; N-BK 7; D=31.5; F=300 |
| G312407xxx | Plano-convex lens; N-BK 7; D=31.5; F=500 |
価格表
-
※送料については、以下のページから詳細をご確認ください。
送料（配送料）について

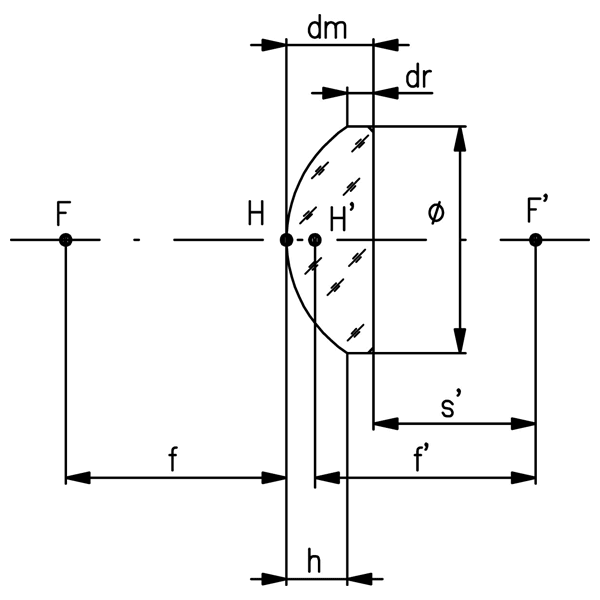

図面
Dimensions
f: focal length (object side)
f': focal length (image side)
s': image distance point secondary vertex
⌀: lens diameter
dm: center thickness
dr: edge thickness
h: primary vertex (h=dm-dr)
F, F': focal points
H, H': principal points
Tolerances:
Focal length f': ±2%
Image distance s': ±2%

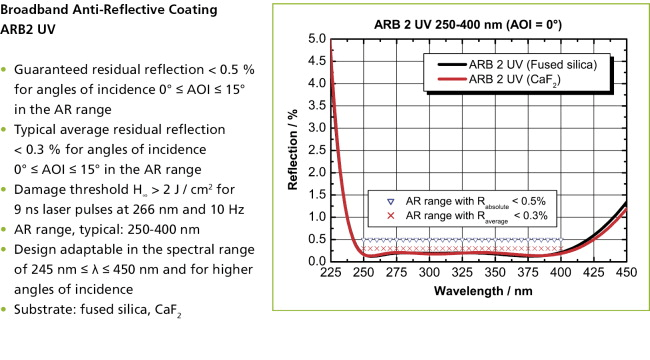

コーティング
