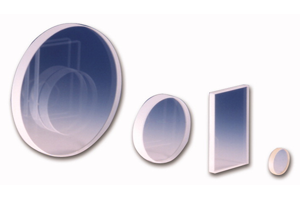

UVグレード石英ガラス平面基板
（標準品質）

Ideal substrates for planar optical components, such as plane mirrors, filters, or beamsplitter plates
Ideal for use as windows in optical systems
Surfaces uncoated
Our plane plates are also available with the following coatings:

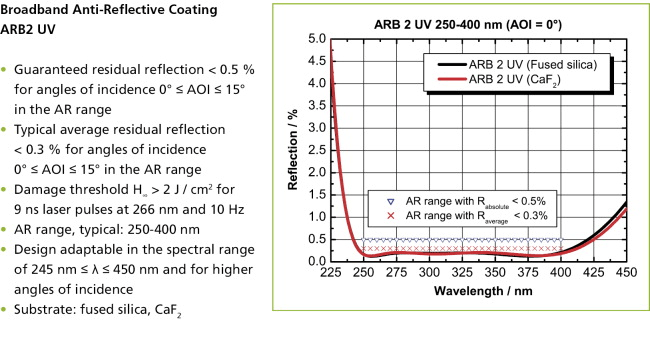

VIS range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 450 - 700 nm).

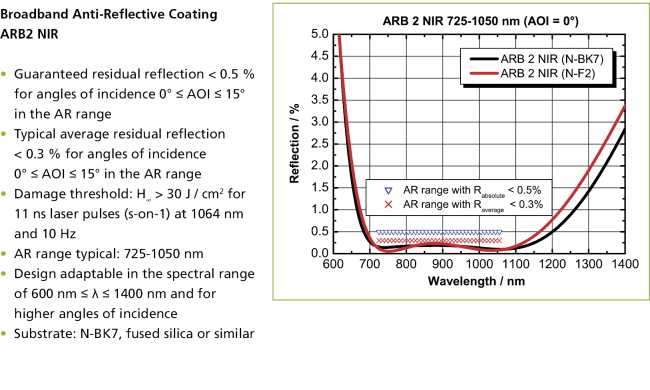

NIR range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 725 - 1050 nm).

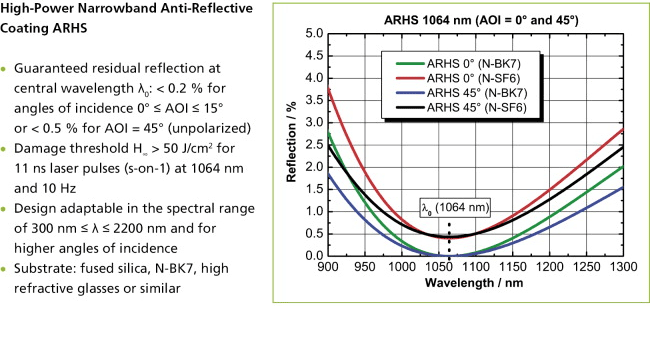

Nd:YAG fundamental (ARHS: R < 0.2 % per surface, AOI = 0°, center wavelength 1064 nm)

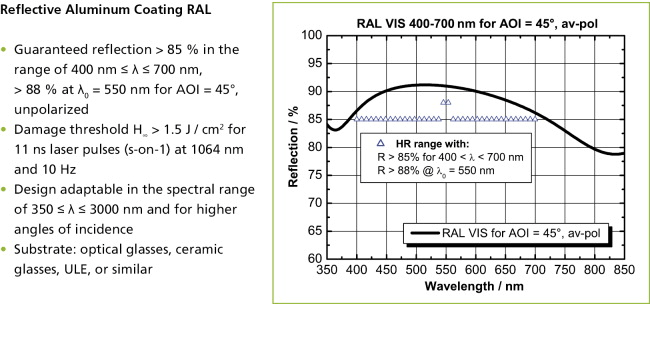

Reflective alµminµm coating (RAL: for λ = 400 nm - 12 µm, damage threshold > 200 mJ / cm²)
Front surface mirror silver coating (RAGV: for λ = 500 nm - 12 µm, damage threshold > 200 mJ / cm²)
For customized optics and higher volµmes please contact our sales team for your individual quotation.

製品一覧・仕様

UVグレード石英ガラス平面基板（標準品質）の一覧表です。 2行目のフィールドに頭の文字を入力すると絞り込めます（例：「1」と入力すると、1から始まるデータの行のみが表示されます）。

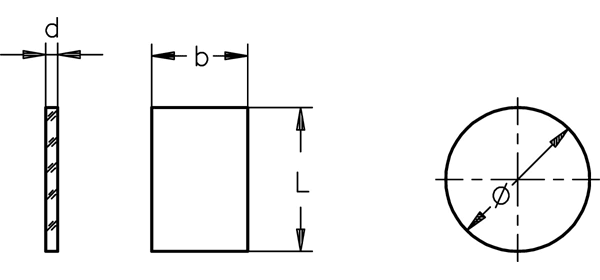

Part No.	Thickness d (mm)	Dimensions bxL or ⌀ (mm)	Tolerance d (mm)	Tolerance b (mm)	Tolerance L (mm)	Flatness Both Surfaces (λ)	Wedge Angle γ	Tolerance ⌀ (mm)
G390198000	2	15x20	±0.2	-0.11	-0.13	1	3'
G390158000	2.5	20x30	±0.2	-0.13	-0.13	2	3'
G390150000	2	⌀ 10	±0.1			1/4	3'	-0.09
G390166000	2	⌀ 12.7	±0.1			1/4	1'	-0.11
G390192000	2	⌀ 16	±0.1			1/4	3'	-0.11
G390151000	3	⌀ 22.4	±0.2			1/4	3'	-0.13
G390167000	5	⌀ 25.4	±0.1			1/4	1'	-0.15
G390152000	3	⌀ 31.5	±0.2			1/2	3'	-0.16
G390153000	4	⌀ 40	±0.2			1/2	3'	-0.16
G390154000	5	⌀ 50	±0.2			1/2	3'	-0.16
G390156000	8	⌀ 80	±0.2			1	3'	-0.22
G390157000	10	⌀ 100	±0.2			2	3'	-0.25
G390159000	3.5	Elliptical 22.4x31.5	±0.2			1/2	3'

型番	製品名
G390198000	Plane plate; Fused silica; Lxh=15x20; 1L
G390158000	Plane plate; Fused silica; Lxh=20x30; 2L
G390150000	Plane plate; Fused silica; D=10; L/4
G390166000	Plane plate; Fused silica; D=12.7; L/4
G390192000	Plane plate; Fused silica; D=16; L/4
G390151000	Plane plate; Fused silica; D=22.4; L/4
G390167000	Plane plate; Fused silica; D=25.4; L/4
G390152000	Plane plate; Fused silica; D=31.5; L/2
G390153000	Plane plate; Fused silica; D=40; L/2
G390154000	Plane plate; Fused silica; D=50; L/2
G390156000	Plane plate; Fused silica; D=80; 1L
G390157000	Plane plate; Fused silica; D=100; 2L
G390159000	Plane plate; Fused silica; D=22.4x31.5 oval; L/2
