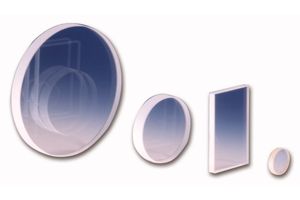

UVグレード石英ガラス平面基板
（高面精度）
- Ideal substrates for planar optical components, such as plane mirrors, filters, or beamsplitter plates
- Ideal for use as windows in optical systems
- Superior quality plates with high flatness of λ/10 on one surface (marked)
- 4 diamond polishing: better than 1 nm rms
- Surfaces uncoated
- Our plane plates are also available with the following coatings:

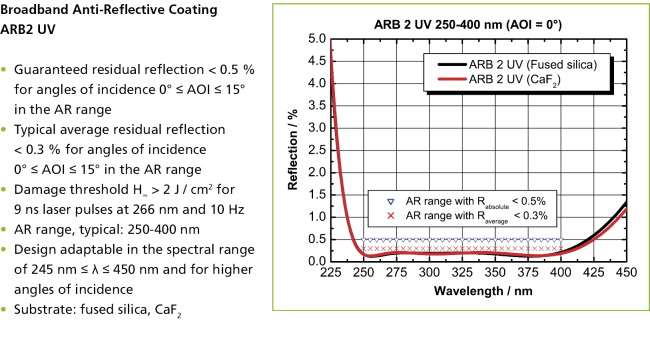

- VIS range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 450 - 700 nm).

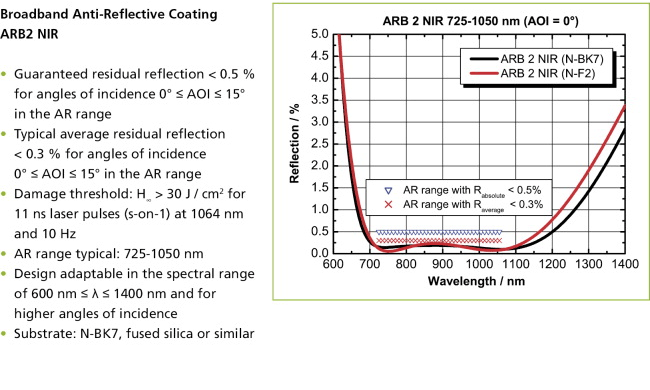

- NIR range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 725 - 1050 nm).

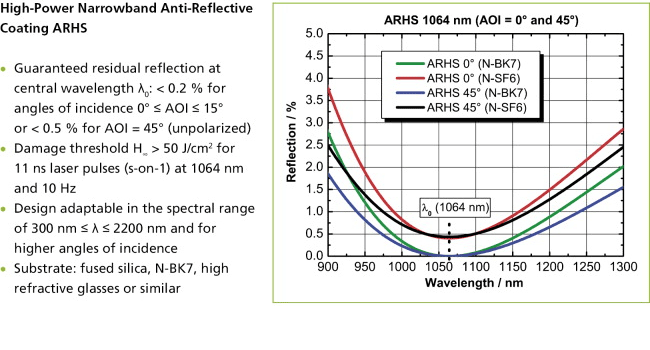

- Nd:YAG fundamental (ARHS: R < 0.2 % per surface, AOI = 0°, center wavelength 1064 nm)

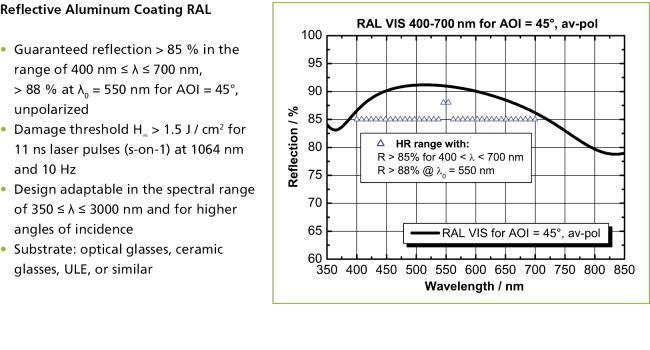

- Reflective aluminum coating (RAL: for λ = 400 nm - 12 µm, damage threshold > 200 mJ / cm2)

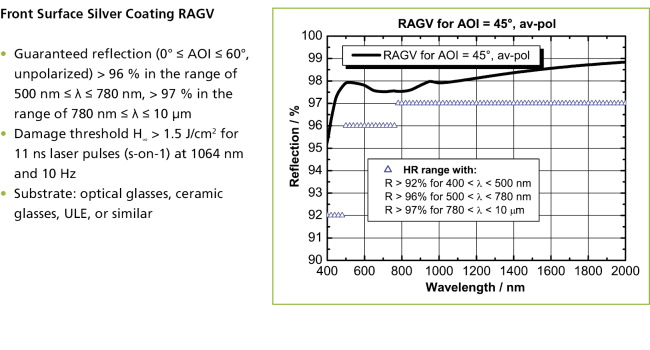

- Front surface mirror silver coating (RAGV: for λ = 500 nm - 12 µm, damage threshold > 200 mJ / cm2)
- For customized optics and higher volumes please contact our sales team for your individual quotation.
仕様
Plane plates fabricated from UV-grade fused silica
| Part No. | Thickness d (mm) | Dimensions bxL or ⌀ (mm) | Tolerance ⌀ (mm) | Tolerance d (mm) | Flatness One Surface (λ) | Wedge Angle γ |
|---|---|---|---|---|---|---|
| G390401000 | 5 | ⌀ 12.7 | -0.12 | ±0.1 | 1/10 | 5' |
| G390403000 | 5 | ⌀ 25 | -0.15 | ±0.2 | 1/10 | 5' |
| G390405000 | 10 | ⌀ 50 | -0.18 | ±0.2 | 1/10 | 5' |
| G390406000 | 10 | ⌀ 63 | -0.19 | ±0.2 | 1/10 | 5' |
| G390402000 | 5 | Elliptical 22.4x31.5 | -0.15 | ±0.2 | 1/10 | 5' |
製品一覧
UVグレード石英ガラス平面基板（高面精度）の一覧表です。
| 型番 | 製品名 |
|---|---|
| G390401000 | Plane plate; Fused silica; D=12.7; L/10 |
| G390403000 | Plane plate; Fused silica; D=25; L/10 |
| G390405000 | Plane plate; Fused silica; D=50; L/10 |
| G390406000 | Plane plate; Fused silica; D=63; L/10 |
| G390402000 | Plane plate; Fused silica; D=22.4x31.5 oval; L/10 |
-
※送料については、以下のページから詳細をご確認ください。
送料（配送料）について
図面

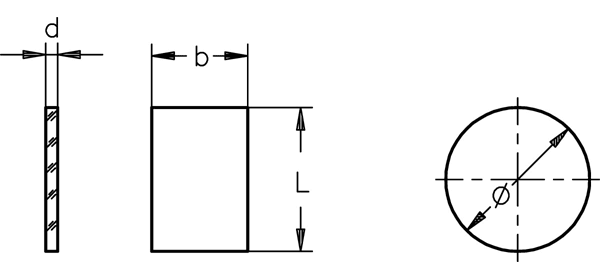

Rectangular type and circular type
