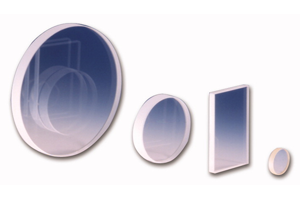

平面基板（N-BK7）

  • Ideal substrates for planar optical components, such as plane mirrors, filters or beamsplitter plates
  • Ideal for use as windows in optical systems
  • Surfaces uncoated
  • Our plane plates are also available with the following coatings:
  • VIS range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 450 - 700 nm).
  • NIR range (ARB2: R < 0.5 % per surface, AOI = 0°, λ = 725 - 1050 nm).
  • Nd:YAG fundamental (ARHS: R < 0.2 % per surface, AOI = 0°, center wavelength 1064 nm)
  • Reflective aluminum coating (RAL: for λ = 400 nm - 12 µm, damage threshold > 200 mJ / cm2)
  • Front surface mirror silver coating (RAGV: for λ = 500 nm - 12 µm, damage threshold > 200 mJ / cm2)
  • For customized optics and higher volumes please contact our sales team for your individual quotation.

価格表

平面基板（N-BK7）

製品一覧 ・ 仕様

平面基板（N-BK7）の一覧表です。 2行目のフィールドに頭の文字を入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。

型番 Optic Size ［mm］ Material Optic Center Thickness dm ［mm］ Paral-lelism Design Wavelength ［mm］ Tolerance d ［mm］ Tolerance b ［mm］ Tolerance L ［mm］ Flatness back surface (λ) Flatness(λ) Coating Specification Tolerance ⌀ ［mm］
G390136000 15 x 20 N-BK7 2 2' 350-2000 ±0.2 -0.11 -0.13 1 1 Uncoated
G390137000 20 x 30 N-BK7 2.5 2' 350-2000 ±0.3 -0.13 -0.13 2 2 Uncoated
G390138000 30 x 50 N-BK7 4 3' 350-2000 ±0.2 -0.13 -0.16 2 2 Uncoated
G390130000 ⌀10 N-BK7 2 2' 350-2000 ±0.1 1/4 1/4 Uncoated -0.09
G390068000 ⌀12.7 N-BK7 2 1' 350-2000 ±0.1 1/4 1/4 Uncoated -0.11
G390131000 ⌀16 N-BK7 2 2' 350-2000 ±0.1 1/4 1/4 Uncoated -0.11
G390132000 ⌀22.4 N-BK7 3 3' 350-2000 ±0.1 1/4 1/4 Uncoated -0.13
G390069000 ⌀25.4 N-BK7 5 1' 350-2000 ±0.1 1/4 1/4 Uncoated -0.15
G390043000 ⌀31.5 N-BK7 3 3' 350-2000 ±0.1 1/2 1/2 Uncoated -0.16
G390133000 ⌀40 N-BK7 6 3' 350-2000 ±0.1 1/2 1/2 Uncoated -0.16
G390134000 ⌀50 N-BK7 6 3' 350-2000 ±0.1 1/2 1/2 Uncoated -0.16
G390135000 ⌀63 N-BK7 6 3' 350-2000 ±0.1 1 1 Uncoated -0.19
G390020000 ⌀80 N-BK7 10 3' 350-2000 ±0.2 1 1 Uncoated -0.19
G390044000 ⌀100 N-BK7 10 3' 350-2000 ±0.15 2 2 Uncoated -0.22
G390139000 ⌀22.4 x ⌀31.5 N-BK7 3.5 3' 350-2000 ±0.2 1/2 1/2 Uncoated
G390136322 15 x 20 N-BK7 2 2' 450-700 ±0.2 -0.11 -0.13 1 1 2x R<0.5% @450-700 nm
G390137322 20 x 30 N-BK7 2.5 2' 450-700 ±0.3 -0.13 -0.13 2 2 2x R<0.5% @450-700 nm
G390138322 30 x 50 N-BK7 4 3' 450-700 ±0.2 -0.13 -0.16 2 2 2x R<0.5% @450-700 nm
G390130322 ⌀10 N-BK7 2 2' 450-700 ±0.1 1/4 1/4 2x R<0.5% @450-700 nm -0.09
G390068322 ⌀12.7 N-BK7 2 1' 450-700 ±0.1 1/4 1/4 2x R<0.5% @450-700 nm -0.11
G390131322 ⌀16 N-BK7 2 2' 450-700 ±0.1 1/4 1/4 2x R<0.5% @450-700 nm -0.11
G390132322 ⌀22.4 N-BK7 3 3' 450-700 ±0.1 1/4 1/4 2x R<0.5% @450-700 nm -0.13
G390069322 ⌀25.4 N-BK7 5 1' 450-700 ±0.1 1/4 1/4 2x R<0.5% @450-700 nm -0.15
G390043322 ⌀31.5 N-BK7 3 3' 450-700 ±0.1 1/2 1/2 2x R<0.5% @450-700 nm -0.16
G390133322 ⌀40 N-BK7 6 3' 450-700 ±0.1 1/2 1/2 2x R<0.5% @450-700 nm -0.16
G390134322 ⌀50 N-BK7 6 3' 450-700 ±0.1 1/2 1/2 2x R<0.5% @450-700 nm -0.16
G390135322 ⌀63 N-BK7 6 3' 450-700 ±0.1 1 1 2x R<0.5% @450-700 nm -0.19
G390020322 ⌀80 N-BK7 10 3' 450-700 ±0.2 1 1 2x R<0.5% @450-700 nm -0.19
G390044322 ⌀100 N-BK7 10 3' 450-700 ±0.15 2 2 2x R<0.5% @450-700 nm -0.22
G390139322 ⌀22.4 x ⌀31.5 N-BK7 3.5 3' 450-700 ±0.2 1/2 1/2 2x R<0.5% @450-700 nm
G390136525 15 x 20 N-BK7 2 2' 725-1050 ±0.2 -0.11 -0.13 1 1 2x R<0.5% @725-1050 nm
G390137525 20 x 30 N-BK7 2.5 2' 725-1050 ±0.3 -0.13 -0.13 2 2 2x R<0.5% @725-1050 nm
G390138525 30 x 50 N-BK7 4 3' 725-1050 ±0.2 -0.13 -0.16 2 2 2x R<0.5% @725-1050 nm
G390130525 ⌀10 N-BK7 2 2' 725-1050 ±0.1 1/4 1/4 2x R<0.5% @725-1050 nm -0.09
G390068525 ⌀12.7 N-BK7 2 1' 725-1050 ±0.1 1/4 1/4 2x R<0.5% @725-1050 nm -0.11
G390131525 ⌀16 N-BK7 2 2' 725-1050 ±0.1 1/4 1/4 2x R<0.5% @725-1050 nm -0.11
G390132525 ⌀22.4 N-BK7 3 3' 725-1050 ±0.1 1/4 1/4 2x R<0.5% @725-1050 nm -0.13
G390069525 ⌀25.4 N-BK7 5 1' 725-1050 ±0.1 1/4 1/4 2x R<0.5% @725-1050 nm -0.15
G390043525 ⌀31.5 N-BK7 3 3' 725-1050 ±0.1 1/2 1/2 2x R<0.5% @725-1050 nm -0.16
G390133525 ⌀40 N-BK7 6 3' 725-1050 ±0.1 1/2 1/2 2x R<0.5% @725-1050 nm -0.16
G390134525 ⌀50 N-BK7 6 3' 725-1050 ±0.1 1/2 1/2 2x R<0.5% @725-1050 nm -0.16
G390135525 ⌀63 N-BK7 6 3' 725-1050 ±0.1 1 1 2x R<0.5% @725-1050 nm -0.19
G390020525 ⌀80 N-BK7 10 3' 725-1050 ±0.2 1 1 2x R<0.5% @725-1050 nm -0.19
G390044525 ⌀100 N-BK7 10 3' 725-1050 ±0.15 2 2 2x R<0.5% @725-1050 nm -0.22
G390139525 ⌀22.4 x ⌀31.5 N-BK7 3.5 3' 725-1050 ±0.2 1/2 1/2 2x R<0.5% @725-1050 nm
G390136329 15 x 20 N-BK7 2 2' 1064 ±0.2 -0.11 -0.13 1 1 R<0.2% @1064 nm
G390137329 20 x 30 N-BK7 2.5 2' 1064 ±0.3 -0.13 -0.13 2 2 R<0.2% @1064 nm
G390138329 30 x 50 N-BK7 4 3' 1064 ±0.2 -0.13 -0.16 2 2 R<0.2% @1064 nm
G390130329 ⌀10 N-BK7 2 2' 1064 ±0.1 1/4 1/4 R<0.2% @1064 nm -0.09
G390068329 ⌀12.7 N-BK7 2 1' 1064 ±0.1 1/4 1/4 R<0.2% @1064 nm -0.11
G390131329 ⌀16 N-BK7 2 2' 1064 ±0.1 1/4 1/4 R<0.2% @1064 nm -0.11
G390132329 ⌀22.4 N-BK7 3 3' 1064 ±0.1 1/4 1/4 R<0.2% @1064 nm -0.13
G390069329 ⌀25.4 N-BK7 5 1' 1064 ±0.1 1/4 1/4 R<0.2% @1064 nm -0.15
G390043329 ⌀31.5 N-BK7 3 3' 1064 ±0.1 1/2 1/2 R<0.2% @1064 nm -0.16
G390133329 ⌀40 N-BK7 6 3' 1064 ±0.1 1/2 1/2 R<0.2% @1064 nm -0.16
G390134329 ⌀50 N-BK7 6 3' 1064 ±0.1 1/2 1/2 R<0.2% @1064 nm -0.16
G390135329 ⌀63 N-BK7 6 3' 1064 ±0.1 1 1 R<0.2% @1064 nm -0.19
G390020329 ⌀80 N-BK7 10 3' 1064 ±0.2 1 1 R<0.2% @1064 nm -0.19
G390044329 ⌀100 N-BK7 10 3' 1064 ±0.15 2 2 R<0.2% @1064 nm -0.22
G390139329 ⌀22.4 x ⌀31.5 N-BK7 3.5 3' 1064 ±0.2 1/2 1/2 R<0.2% @1064 nm

価格表

図面

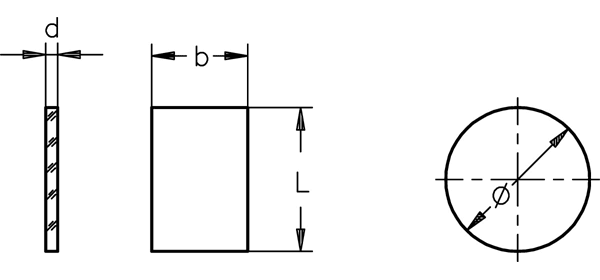

Rectangular type and circular type

コーティング

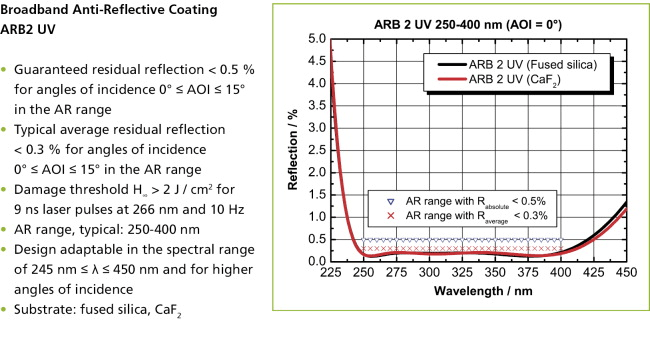

Broadbaand Anti-Reflective Coating ARB UV

Broadbaand Anti-Reflective Coating ARB2 VIS

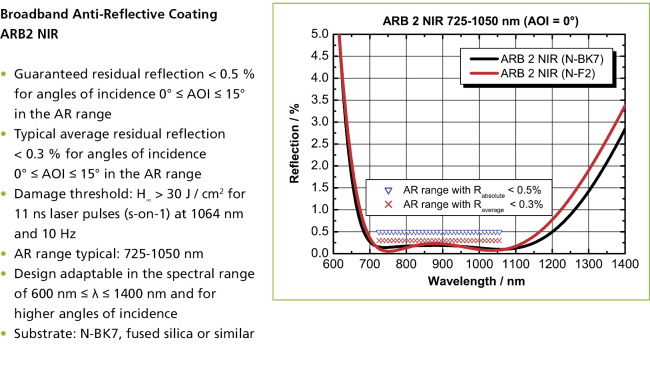

Broadbaand Anti-Reflective Coating ARB2 NIR

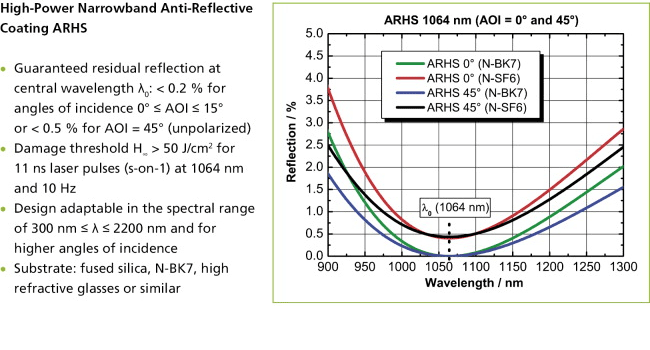

High-Power Narrowband Anti-Reflective Coating ARHS

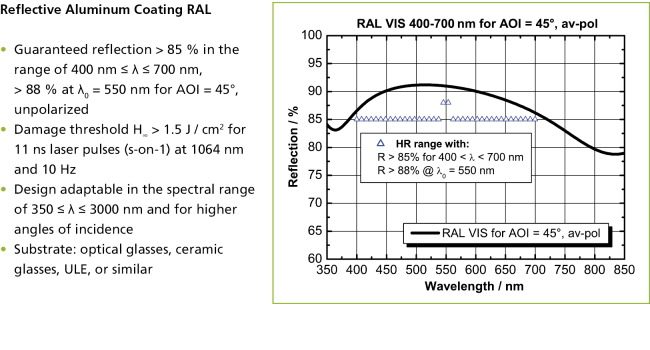

Reflective Aluminum Coatig RAL

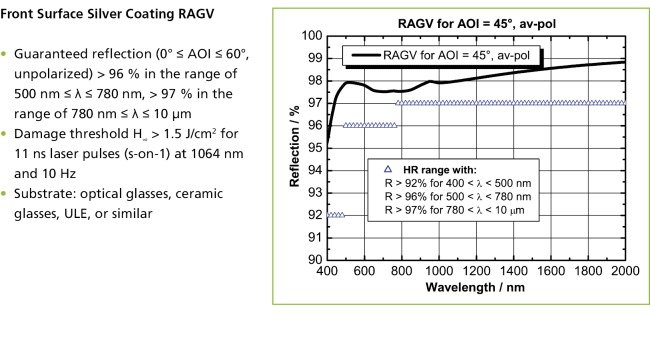

Front Surface Silver Coating RAGV
