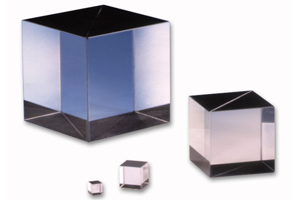

ビームスプリッターキューブ VIS（可視）
- For splitting or combining light beams
- No angular or lateral deflection of transmitted beams
- Reflected and transmitted beams transit identical optical paths
- Compact, rugged units
- Designed for use with low-power lasers (0.1 J / cm2 for 10 ns pulses at 1064 nm)
- Optionally available with other beamsplitting ratios
- N-BK7 glass
- Reflectance ≈ transmittance ± 5 % for unpolarized light
- Absorption < 5 %
- Broadband AR-coated
- 8 arcmin angular beam deflection tolerance
- For higher quantities, customized versions (other sizes, materials, coatings) available on request.
- Recommended holder for beamsplitters with 10 mm edge length: Clamp holder G06 1641 000, chapter Polarization Optics
仕様
| Part No. | Dimensions h=L1=L2 (mm) | Tolerance h (mm) | Tolerance L1 (mm) | Tolerance L2 (mm) |
|---|---|---|---|---|
| G335505000 | 5 | -0.075 | ±0.3 | ±0.3 |
| G335510000 | 10 | -0.09 | ±0.3 | ±0.3 |
| G335514000 | 12.5 | -0.11 | ±0.2 | ±0.2 |
| G335517000 | 16 | -0.11 | ±0.2 | ±0.2 |
| G335520000 | 20 | -0.13 | ±0.4 | ±0.4 |
| G335525000 | 25 | -0.13 | ±0.4 | ±0.4 |
| G335530000 | 30 | -0.16 | ±0.4 | ±0.4 |
| G335540000 | 40 | -0.16 | ±0.4 | ±0.4 |
製品一覧
ビームスプリッターキューブ VIS（可視）の一覧表です。
| 型番 | 製品名 |
|---|---|
| G335505000 | Beamsplitter Cube VIS; N-BK7; L=5 |
| G335510000 | Beamsplitter Cube VIS; N-BK7; L=10 |
| G335514000 | Beamsplitter Cube VIS; N-BK7; L=12.5 |
| G335517000 | Beamsplitter Cube VIS; N-BK7; L=16 |
| G335520000 | Beamsplitter Cube VIS; N-BK7; L=20 |
| G335525000 | Beamsplitter Cube VIS; N-BK7; L=25 |
| G335530000 | Beamsplitter Cube VIS; N-BK7; L=30 |
| G335540000 | Beamsplitter Cube VIS; N-BK7; L=40 |
価格表
-
※送料については、以下のページから詳細をご確認ください。
送料（配送料）について

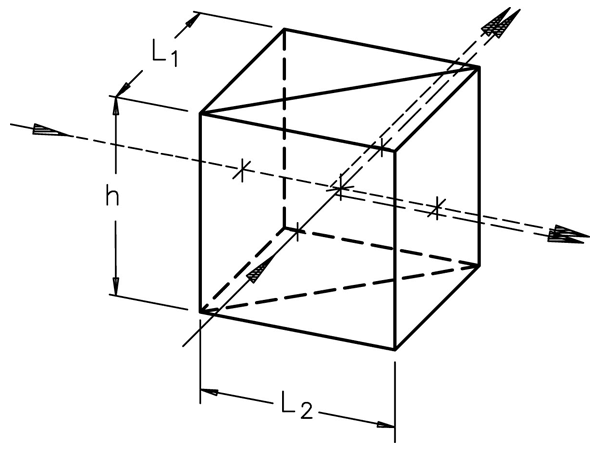

図面
h height
L1 width
L2 length
反射率・透過率

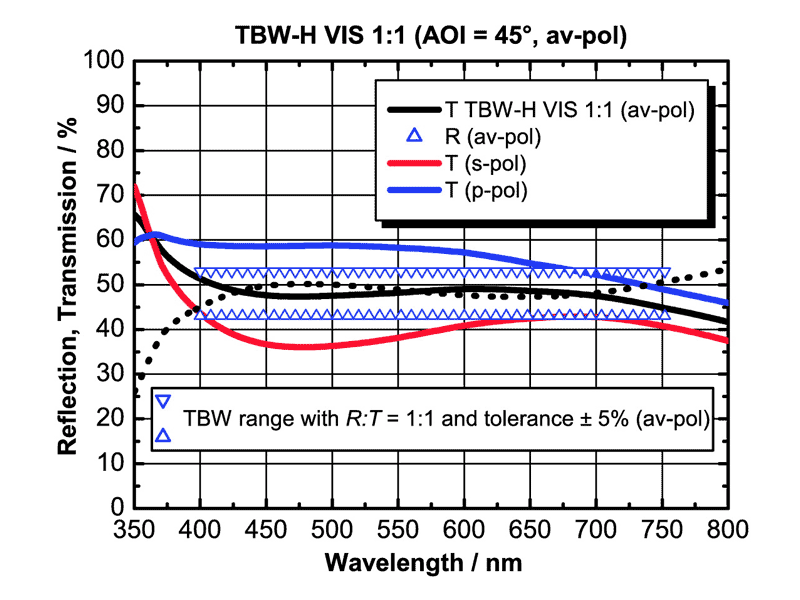

Example: TBW-H VIS 50:50 for 400-750 nm (AOI = 45°; unpolarized)
