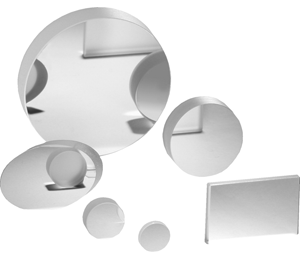

アルミコートミラー（楕円形）
- Standard aluminium mirrors for the spectral ranges VIS to IR up to 10 µm or UV to 3 µm, respectively
- High reflection within a broad spectral and angle-of-incidence range
- Protected by an SiO2 overcoating (RAL)or MgF2 protective overcoating for the UV-region (RAL UV)
- Low expansion material *1
- RAL-UV: Guaranteed reflection > 85 % in the range of 230 nm ≤ λ ≤ 400 nm, > 88 % at λ0 = 300 nm for AOI = 45°, unpolarized
- RAL-UV: Damage threshold H∞ > 200 mJ/cm2 at 193 nm with 30 ns laser pulses (s-on-1) at 10 Hz
- RAL VIS: Guaranteed reflection > 85 % in the range of 400 nm ≤ λ ≤ 700 nm, > 88 % at λ0 = 550 nm for AOI = 45°, unpolarized
- RAL VIS: Damage threshold H∞ > 1.5 J / cm2 at 1064 nm with 11 ns laser pulses (s-on-1) at 10 Hz
-
*1Definition: A low expansion material is a glass with nd = 1.47 and a coefficient of expansion α20 - 300 °C = 3.3 * 10-6 / K (i.e. Pyrex, DURAN, Tempax, Borofloat).
-
*2Custom mirrors offering other substrates or coatings are available for higher quantities on request.
製品一覧 ・ 仕様
2行目の入力フィールドに先頭の文字から入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。
| 型番 ・ 製品名 | Thickness d ［mm］ | Tolerance ⌀ ［mm］ | Tolerance d ［mm］ | Surface Coating | Size ⌀xL ［mm］ | Flatness （λ） |
|---|---|---|---|---|---|---|
| G340380000 Pl. Mirror RAL; D=10x14 oval; d=2; L/2 |
2 | -0.06 | ± 0.2 | RAL-Coating 380 nm - 10 µm | 10x14 | 1/2 |
| G340616331 Pl. Mirror RAL; D=12.5x18 oval; d=2; L/2 |
2 | -0.08 | ± 0.2 | RAL-Coating 380 nm - 10 µm | 12.5x18 | 1/2 |
| G340003000 Pl. Mirror RAL; D=22.4x31.5 oval; d=3.5; L/2 |
3.5 | -0.1 | ± 0.2 | RAL-Coating 380 nm - 10 µm | 22.4x31.5 | 1/2 |
| G340381000 Pl. Mirror RAL; D=22.4x31.5 oval; d=3.5; L/10 |
3.5 | -0.1 | ± 0.2 | RAL-Coating 380 nm - 10 µm | 22.4x31.5 | 1/10 |
| G340002000 Pl. Mirror RAL; D=31.5x45 oval; d=4; L/2 |
4 | -0.12 | ± 0.2 | RAL-Coating 380 nm - 10 µm | 31.5x45 | 1/2 |
| G340004000 Pl. Mirror RAL; D=50x71 oval; d=7; 1L |
6 | -0.12 | ± 0.2 | RAL-Coating 380 nm - 10 µm | 50x71 | 1 |
| G340380332 Pl. Mirror RAL-UV; D=10x14 oval; d=2; L/2 |
2 | -0.06 | ± 0.2 | RAL UV-Coating 220 nm - 3 µm | 10x14 | 1/2 |
| G340616332 Pl. Mirror RAL-UV; D=12.5x18 oval; d=2; L/2 |
2 | -0.08 | ± 0.2 | RAL UV-Coating 220 nm - 3 µm | 12.5x18 | 1/2 |
| G340094000 Pl. Mirror RAL-UV; D=22.4x31.5 oval; d=3.5; L/2 |
3.5 | -0.1 | ± 0.2 | RAL UV-Coating 220 nm - 3 µm | 22.4x31.5 | 1/2 |
| G340381332 Pl. Mirror RAL-UV; D=22.4x31.5 oval; d=3.5; L/10 |
3.5 | -0.1 | ± 0.2 | RAL UV-Coating 220 nm - 3 µm | 22.4x31.5 | 1/10 |
| G340002332 Pl. Mirror RAL-UV; D=31.5x45 oval; d=4; L/2 |
4 | -0.12 | ± 0.2 | RAL UV-Coating 220 nm - 3 µm | 31.5x45 | 1/2 |
| G340004332 Pl. Mirror RAL-UV; D=50x71 oval; d=6; 1L |
6 | -0.12 | ± 0.2 | RAL UV-Coating 220 nm - 3 µm | 50x71 | 1 |
価格表
-
※送料については、次のページから詳細をご確認ください。 送料（配送料）について

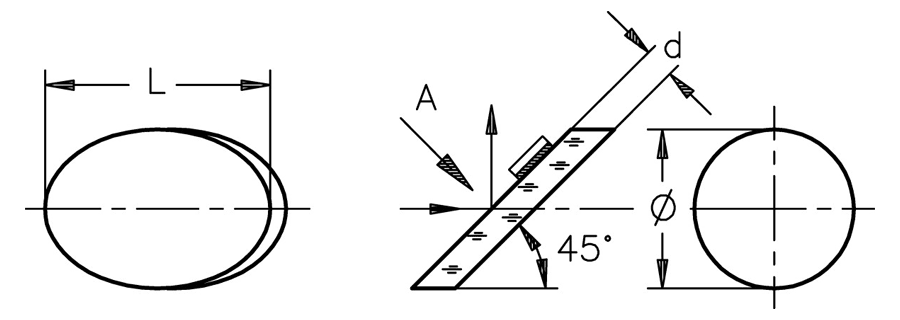

図面
反射率
Example: RAL-E UV for 230-400 nm (AOI=45°, unpolarized)

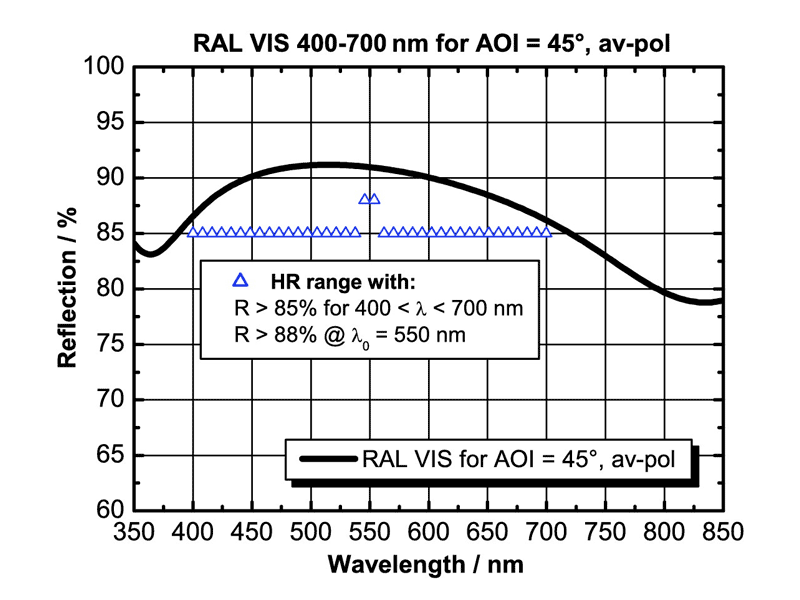

Example: RAL VIS for 400-700 nm (AOI=45°, unpolarized
