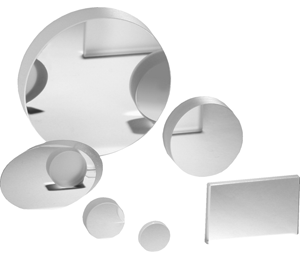

アルミコートミラー（円形）
- Standard aluminium mirrors for the spectral ranges VIS to IR up to 10 µm or UV to 3 µm, respectively
- High reflection within a broad spectral and angle-of-incidence range
- Protected by an SiO2 overcoating (RAL)or MgF2protective overcoating for the UV-region (RAL UV)
- Low expansion material *1
- RAL-UV: Guaranteed reflection > 85 % in the range of 230 nm ≤ λ ≤ 400 nm, > 88 % at λ0 = 300 nm for AOI = 45°, unpolarized
- RAL-UV: Damage threshold H∞ > 200 mJ/cm2 at 193 nm with 30 ns laser pulses (s-on-1) at 10 Hz
- RAL VIS: Guaranteed reflection > 85 % in the range of 400 nm ≤ λ ≤ 700 nm, > 88 % at λ0 = 550 nm for AOI = 45°, unpolarized
- RAL VIS: Damage threshold H∞ > 1.5 J / cm2 at 1064 nm with 11 ns laser pulses (s-on-1) at 10 Hz
-
*1Definition: A low expansion material is a glass with nd = 1.47 and a coefficient of expansion α20 - 300 °C = 3.3 * 10-6 / K (i.e. Pyrex, DURAN, Tempax, Borofloat).
-
*2Custom mirrors offering other substrates or coatings are available for higher quantities on request.
製品一覧 ・ 仕様
2行目の入力フィールドに先頭の文字から入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。
| 型番 ・ 製品名 | ⌀ ［mm］ | Thickness d ［mm］ | Tolerance ⌀ ［mm］ | Tolerance d ［mm］ | Surface Coating | Flatness （λ） | Recommendation |
|---|---|---|---|---|---|---|---|
| G340080000 Pl. Mirror RAL; D=6; d=1; L/4 |
6 | 1 | -0.05 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/4 | |
| G340081000 Pl. Mirror RAL; D=10; d=2; L/4 |
10 | 2 | -0.06 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/4 | |
| G340333331 Pl. Mirror RAL; D=10; d=2; L/10 |
10 | 2 | -0.06 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340082000 Pl. Mirror RAL; D=12.7; d=2.5; L/4 |
12.7 | 2.5 | -0.08 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/4 | |
| G340341000 Pl. Mirror RAL; D=12.7; d=2.5; L/10 |
12.7 | 2.5 | -0.08 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340207000 Pl. Mirror RAL; D=12.7; d=5; L/10 |
12.7 | 5 | -0.08 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | Lees Mirror Mount |
| G340083000 Pl. Mirror RAL; D=18; d=4; L/2 |
18 | 4 | -0.08 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/2 | |
| G340334331 Pl. Mirror RAL; D=18; d=4; L/10 |
18 | 4 | -0.08 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340084000 Pl. Mirror RAL; D=21; d=4; L/4 |
21 | 4 | -0.1 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/4 | |
| G340005000 Pl. Mirror RAL; D=22.2; d=4; L/2 |
22.2 | 4 | -0.1 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/2 | |
| G340069000 Pl. Mirror RAL; D=22.2; d=4; L/10 |
22.2 | 4 | -0.1 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340085000 Pl. Mirror RAL; D=25.4; d=5; L/2 |
25.4 | 5 | -0.1 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/2 | Lees Mirror Mount |
| G340086000 Pl. Mirror RAL; D=25.4; d=5; L/10 |
25.4 | 5 | -0.1 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | Lees Mirror Mount |
| G340087000 Pl. Mirror RAL; D=31.5; d=5; L/2 |
31.5 | 5 | -0.12 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/2 | |
| G340008000 Pl. Mirror RAL; D=31.5; d=5; L/10 |
31.5 | 5 | -0.12 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340088000 Pl. Mirror RAL; D=40; d=8; L/2 |
40 | 8 | -0.12 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/2 | |
| G340010000 Pl. Mirror RAL; D=40; d=8; L/10 |
40 | 8 | -0.12 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340000000 Pl. Mirror RAL; D=50; d=5; 1L |
50 | 5 | -0.12 | ±0.2 | RAL-Coating 380 nm - 10 µm | 12/31 | Lees Mirror Mount |
| G340016000 Pl. Mirror RAL; D=50; d=10; L/10 |
50 | 10 | -0.12 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | Lees Mirror Mount |
| G340097000 Pl. Mirror RAL; D=63; d=10; L/10 |
63 | 10 | -0.14 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340090000 Pl. Mirror RAL; D=80; d=12.5; 2L |
80 | 12.5 | -0.14 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/1 | |
| G340098000 Pl. Mirror RAL; D=80; d=12.5; L/10 |
80 | 12.5 | -0.14 | ±0.2 | RAL-Coating 380 nm - 10 µm | 1/10 | |
| G340080332 Pl. Mirror RAL-UV; D=6; d=1; L/4 |
6 | 1 | -0.05 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/4 | |
| G340340000 Pl. Mirror RAL-UV; D=10; d=2; L/4 |
10 | 2 | -0.06 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/4 | |
| G340333000 Pl. Mirror RAL-UV; D=10; d=2; L/10 |
10 | 2 | -0.06 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | |
| G340082332 Pl. Mirror RAL-UV; D=12.7; d=2.5; L/4 |
12.7 | 2.5 | -0.08 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/4 | |
| G340341332 Pl. Mirror RAL-UV; D=12.7; d=2.5; L/10 |
12.7 | 2.5 | -0.08 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | |
| G340304000 Pl. Mirror RAL-UV; D=12.7; d=5; L/10 |
12.7 | 5 | -0.08 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | Lees Mirror Mount |
| G340334000 Pl. Mirror RAL-UV; D=18; d=4; L/10 |
18 | 4 | -0.08 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | |
| G340092000 Pl. Mirror RAL-UV; D=22.2; d=4; L/2; |
22.2 | 4 | -0.1 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/2 | |
| G340335000 Pl. Mirror RAL-UV; D=22.2; d=4; L/10 |
22.2 | 4 | -0.1 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | |
| G340343000 Pl. Mirror RAL-UV; D=25.4; d=5; L/2 |
25.4 | 5 | -0.1 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/2 | Lees Mirror Mount |
| G340346000 Pl. Mirror RAL-UV; D=25.4; d=5; L/10 |
25.4 | 5 | -0.1 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | Lees Mirror Mount |
| G340344000 Pl. Mirror RAL-UV; D=31.5; d=5; L/2 |
31.5 | 5 | -0.12 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/2 | |
| G340336000 Pl. Mirror RAL-UV; D=31.5; d=5; L/10 |
31.5 | 5 | -0.12 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | |
| G340010332 Pl. Mirror RAL-UV; D=40; d=8; L/10 |
40 | 8 | -0.12 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | |
| G340337000 Pl. Mirror RAL-UV; D=50; d=10; L/10 |
50 | 10 | -0.12 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 | Lees Mirror Mount |
| G340097332 Pl. Mirror RAL-UV; D=63; d=10; L/10 |
63 | 10 | -0.14 | ±0.2 | RAL UV-Coating 220 nm - 3 µm | 1/10 |
価格表
-
※送料については、次のページから詳細をご確認ください。 送料（配送料）について

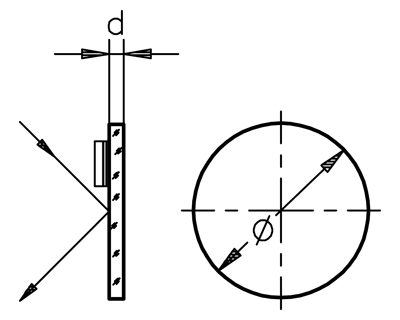

図面
反射率

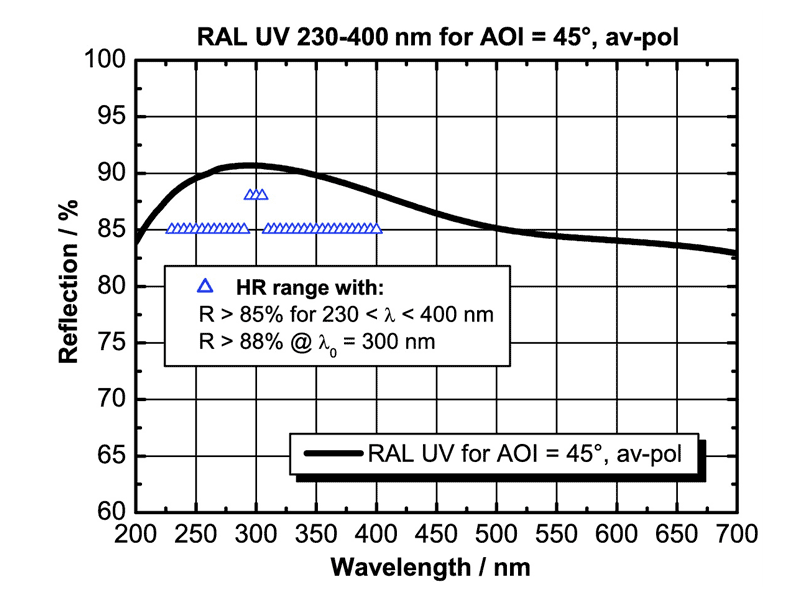

Example: RAL-E UV for 230-400 nm
(AOI=45°, unpolarized)

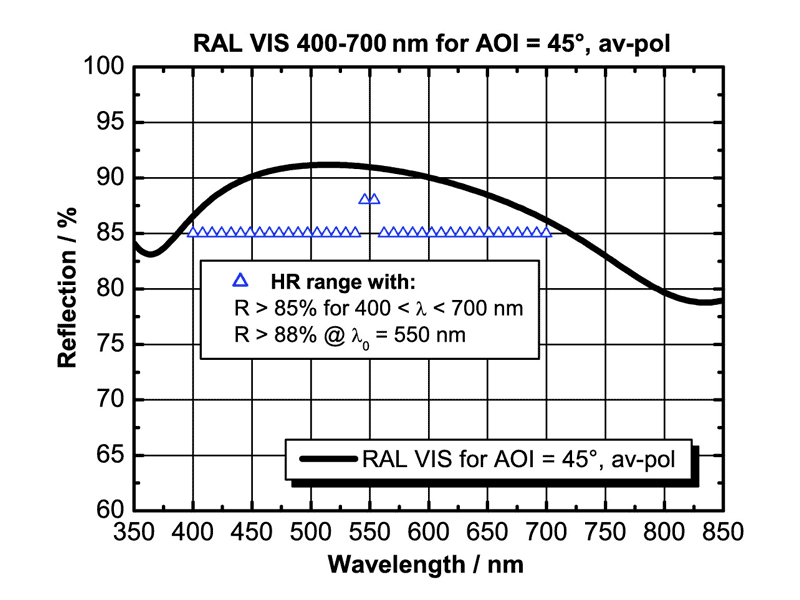

Example: RAL VIS for 400-700 nm
(AOI=45°, unpolarized
