The RB-Series diode pumped laser module has quickly become an industry standard; thousands of these workhorse components are in use around the world. They have proven themselves to be a reliable, high-performance component in DPSS laser systems.

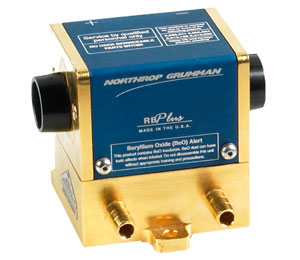

The RB Plus is a second-generation model that includes new features that make it even easier to integrate and service.

The RB Plus Diode-Pumped Laser Module is offered at power levels up to 100 Watts in a simple, compact, and affordable package.

The RB Plus module is an ideal building block in the development or production of medium power rod laser systems, conversion of existing lamp-based laser designs to diode-pumping, or retrofit of existing arc lamp hardware to provide more stable and reliable operation.

ラインアップ

型番をクリックしますと、データシート(PDF)がご覧になれます。

型番 ロッドタイプ 出力*4 動作電圧*5 動作電流
2 mm, YAG*1 10 W 6 VDC 0-38 A (25 A nominal)
2 mm, YAG*1 20 W 12 VDC 0-38 A (25 A nominal)
2 mm, YAG*1 35 W 18 VDC 0-38 A (25 A nominal)
2 mm, YAG*1 50 W 24 VDC 0-38 A (25 A nominal)
3 mm, YAG*1 50 W 18 VDC 0-38 A (25 A nominal)
3 mm, YAG*2 75 W 24 VDC 0-38 A (25 A nominal)
3 mm, YAG*3 100 W 30 VDC 0-38 A (25 A nominal)
  • *1
    Rod length is 63 mm with flat/flat faces and 0.6% Nd doping (curved faces available)
  • *2
    Rod length is 73 mm with flat/flat faces and 0.6% Nd doping (curved faces available)
  • *3
    Rod length is 83 mm with flat/flat faces and 0.6% Nd doping (curved faces available)
  • *4
    Minimum 1064 nm multi-mode output in a short cavity (165 ± 5 mm, 0.75mCC HR/flat 80%R OC) CW oscillator,
    at a maxiumum 25A drive current, arrangement at delivery.
  • *5
    Approximate required voltage at the pump head stated w/o consideration for inefficiencies in the electrical system. Your DC power supply should be oversized by 30% to allow for these inefficiencies.
