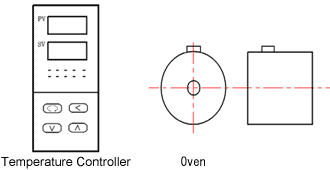

CASTECH provides oven and temperature controller for heating the crystal and controlling its temperature to a certain value.
仕様
Temperature Controller | Oven |
---|---|
Purpose ASIC processor | Design: Radioactive heat compensation |
PID control | Plane temperature distribution |
Auto tuning | Fast tuning |
RS-232 interface (optional) | Size: φ50mm×55mm |
Programmable (optional) | Cavity size: φ10mm×55mm |
Stability: ±0.1°C | Sensor: Pt100 thermocouple |
Size: 50×100×135mm3 | Working temperature: ≤180°C |
Normal Package Standard | |
Voltage: 85~135VAC |
Applications: Heating nonlinear crystals is usually employed in NCPM, OPO, OPA, etc.
Note: Special applications are available upon request.
