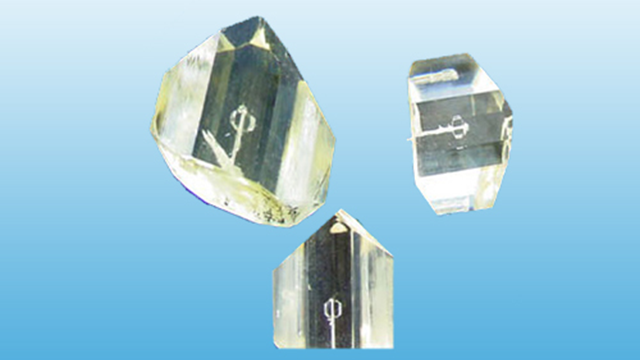

RTP 結晶
RTP (Rubidium Titanyle Phosphate – RbTiOPO4) is an isomorph of KTP crystal which is used in nonlinear and Electro Optical applications. It has advantages of higher damage threshold(about 1.8 times of KTP), high resistivity, high repetition rate, no hygroscopic and no induce piezo-electric effect with electrical signals up to 60 kHz. Its transmission range is 350nm to 4500nm.
Basic Properties
| Crystal structure | Orthorhombic |
|---|---|
| Cell Parameters | a = 12.96 Å; b =10.56 Å; c =6.49 Å |
| Mohs hardness | About 5 |
| Density (g/cm3) | 3.6 |
| Melting Point: | About 1000 ˚C |
| Thermal Expansion Coefficients (/K) | αx=1.01x10-5, αy =1.37x10-5, αz =-4..17x10-6 |
| Sellmeier equations (λ in um) | nx2=2.15559 + 0.93307[1-(0.20994/λ)2] - 0.01452λ2 ny2=2.38494 + 0.73603[1-(0.23891/λ)2] - 0.01583 λ2 nz2=2.27723 + 1.11030[1-(0.23454/λ)2] - 0.01995λ2 |
| Thermo-optical coefficients (dλ/dT) | -0.029 nm / °C |
| Electro-optic constants | Y-cut: r33=38.5 pm/V,X-cut: r33=35 pm/V, r23=12.5 pm/V, r13=10.6 pm/V |
| Electrical Resistivity | About 1011-1012ohm·cm |
| Static Half Wave Voltage at 1064 nm | 4x4x20 mm: 1,600 V 6x6x20 mm: 2,400 V 9x9x20 mm: 3,600 V |
| Extinction Ratio | >20dB@633nm |
仕様
| Growing Orientation | Along Y-axis |
|---|---|
| Maximum length (5 x 5 mm2) | 25 mm |
| Length tolerance, mm | +0.5 / -0.1 |
| Width and heighth tolerance, mm | +/- 0.1 |
| Parallelism | < 30″ |
| Perpendicularity | < 15′ |
| Surface quality | 20/10 |
| coating | AR-coated |
